BQ24702PWR - Texas Instruments

Description: Multi-Chemistry Battery Charge Controller and System Power Selector

Download BQ24702PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

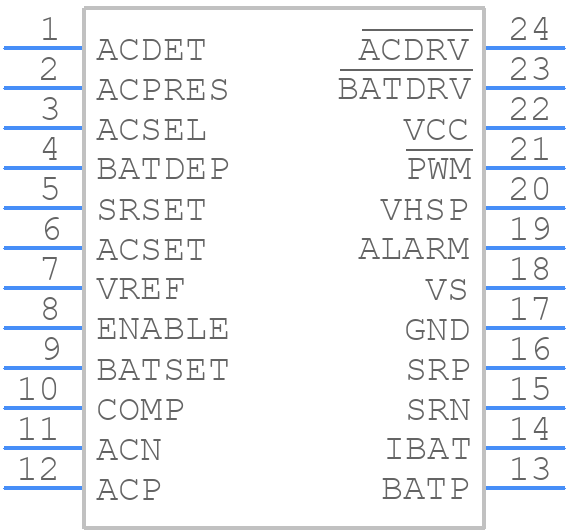

BQ24702PWR - Texas Instruments - PCB symbol
