Texas Instruments provides a recommended PCB layout in the application note SLUA533, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of external components such as resistors, capacitors, and inductors depends on the specific application requirements. TI provides a component selection guide in the datasheet, and also offers online tools such as the Power Stage Designer and the Capacitor Selection Tool to help with component selection.
While the datasheet specifies an operating temperature range of -40°C to 85°C, the maximum ambient temperature for reliable operation depends on the specific application and the thermal management design. In general, it's recommended to keep the junction temperature below 125°C to ensure reliable operation.
The BQ24705RGER has built-in OVP and UVP features, but they require external resistors and capacitors to set the threshold voltages. The datasheet provides a detailed description of how to implement OVP and UVP, and also offers an application note (SLUA535) that provides more information on implementing these features.
Yes, the BQ24705RGER can be used for charging multiple battery cells in series, but it requires additional external components and circuitry to monitor and balance the cell voltages. TI provides an application note (SLUA536) that describes how to implement a multi-cell battery charger using the BQ24705RGER.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24705RGER Overview

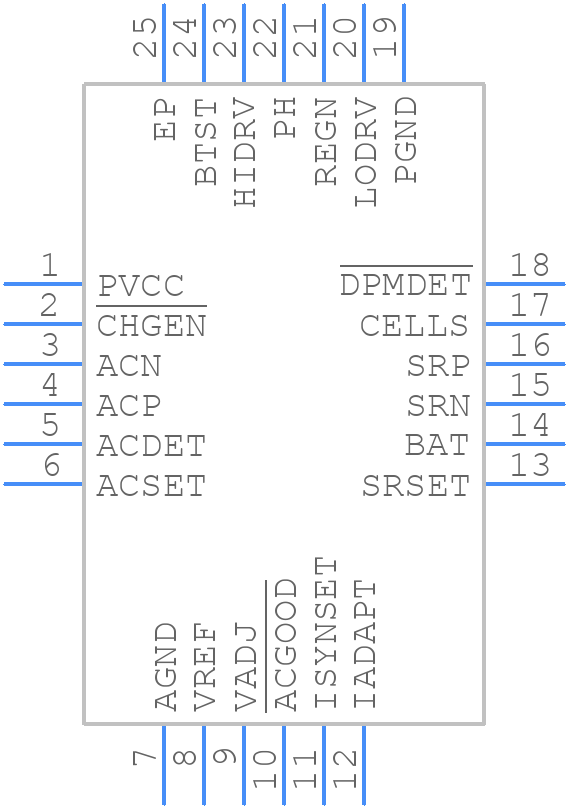

Use the download button to access the BQ24705RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ247,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
