BQ24707RGRT - Texas Instruments

Description: High-Frequency, High Performance SMBus Charge Controller

Download BQ24707RGRT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

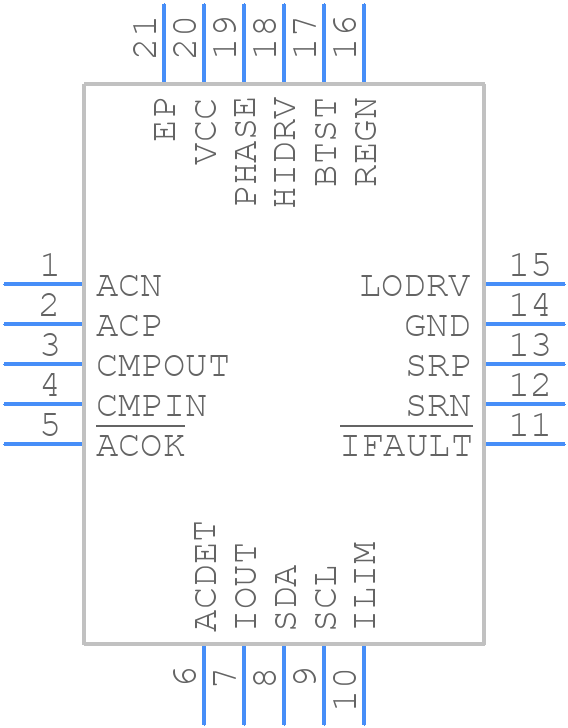

BQ24707RGRT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24707RGRT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGR (S-PVQFN-N20)_1
click to zoom
3D Models
BQ24707RGRT - Texas Instruments - 3D model - Quad Flat No-Lead - RGR (S-PVQFN-N20)_1
click to zoom

BQ24707RGRT Details

  • Manufacturer Part Number:

    BQ24707RGRT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.14SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.75V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

BQ24707RGRT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the battery, and the power inductors should be placed close to the device. A good layout will help reduce EMI and improve efficiency.
  • The inductor value depends on the input voltage, output voltage, and output current. A good starting point is to use the inductor value calculation formula provided in the datasheet. The inductor value should be chosen to ensure that the inductor current ripple is within 20-40% of the output current.
  • The BQ24707RGRT can operate in ambient temperatures up to 85°C. However, the device's junction temperature should not exceed 125°C. The device's thermal performance should be evaluated in the specific application to ensure reliable operation.
  • The BQ24707RGRT has a built-in overcurrent protection feature. The OCP threshold can be set using an external resistor connected to the OCP pin. The device will shut down if the output current exceeds the set threshold.
  • Yes, the BQ24707RGRT can operate with input voltages ranging from 2.5V to 5.5V, making it suitable for battery-powered applications. However, the device's performance should be evaluated over the entire input voltage range to ensure reliable operation.
