BQ24715RGRT - Texas Instruments

Description: Battery Management 2-3 Cell Li+ Batt SMBus Charge Cntlr

Download BQ24715RGRT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

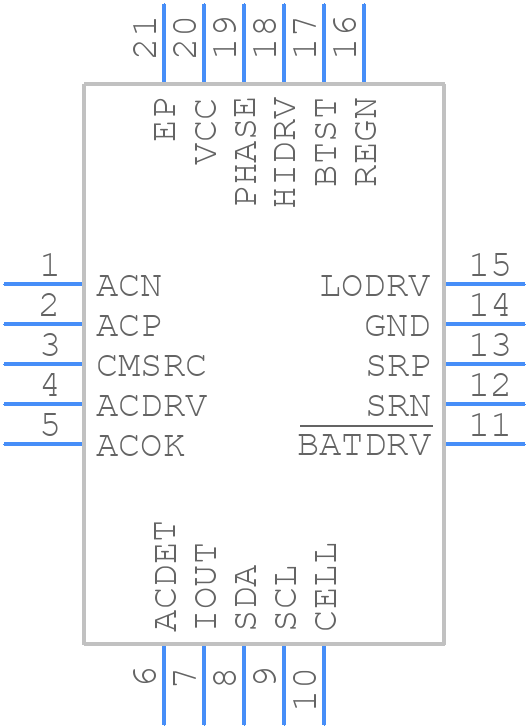

Symbol
BQ24715RGRT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24715RGRT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGR (S-PVQFN-N20)_1
click to zoom
3D Models
BQ24715RGRT - Texas Instruments - 3D model - Quad Flat No-Lead - RGR (S-PVQFN-N20)_1
click to zoom

BQ24715RGRT Details

  • Manufacturer Part Number:

    BQ24715RGRT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

BQ24715RGRT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'BQ24715 PCB Layout Guidelines' (SLUAAC7) for optimal performance and thermal management.
  • The selection of external components such as inductors, capacitors, and resistors depends on the specific application and design requirements. Texas Instruments provides a component selection guide in the datasheet, but it's also recommended to use the WEBENCH Power Designer tool to simplify the component selection process.
  • The maximum ambient temperature for the BQ24715RGRT is 85°C, but it's recommended to derate the device's power dissipation at higher temperatures to ensure reliable operation. Refer to the thermal derating curve in the datasheet for more information.
  • The BQ24715RGRT has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides more information on how to implement overcurrent protection, and Texas Instruments also provides an application note 'BQ24715 Overcurrent Protection' (SLUAAC6) for more detailed guidance.
  • The BQ24715RGRT is rated for a maximum input voltage of 18V, but it can be used in high-voltage applications with the use of an external voltage regulator or a high-voltage tolerant input stage. However, it's essential to ensure that the device's absolute maximum ratings are not exceeded, and to follow proper design and layout guidelines to prevent voltage overstress.
