BQ24725RGRT - Texas Instruments

Description: Texas Instruments BQ24725RGRT, Lithium-Ion, Lithium-Polymer, Battery Charge Controller, 8.128A 20-Pin, VQFN

Download BQ24725RGRT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

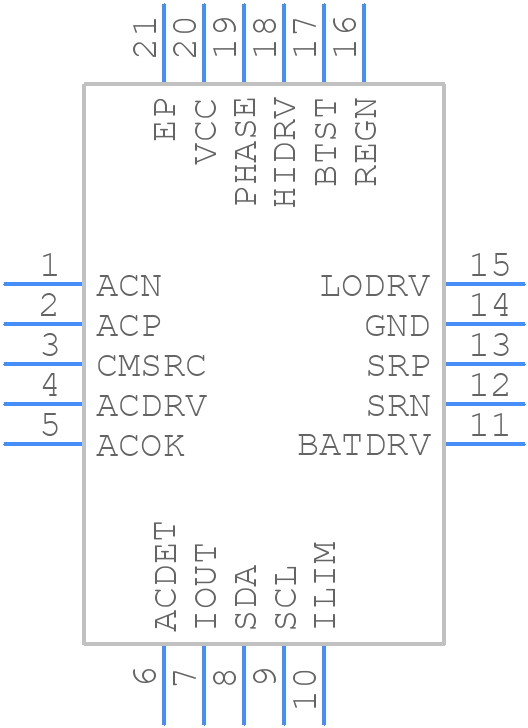

BQ24725RGRT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24725RGRT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGR (S-PVQFN-N20)
click to zoom
3D Models
BQ24725RGRT - Texas Instruments - 3D model - Quad Flat No-Lead - RGR (S-PVQFN-N20)
click to zoom

BQ24725RGRT Details

  • Manufacturer Part Number:

    BQ24725RGRT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR

  • Input Voltage-Max:

    24 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

BQ24725RGRT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the battery, and the power inductors should be placed close to the device. A thermal pad should be used to connect the device to the ground plane.
  • The inductor value depends on the input voltage, output voltage, and output current. A good starting point is to use the inductor value calculation formula provided in the datasheet. The inductor value should be selected to ensure that the inductor current ripple is within 20-30% of the output current.
  • A low-ESR ceramic capacitor with a value of 10-22uF is recommended. The capacitor should be placed close to the device and connected between the VIN pin and the GND pin.
  • The output voltage can be configured by connecting a resistor divider network between the VOUT pin and the GND pin. The resistor values can be calculated using the formula provided in the datasheet.
  • The maximum ambient temperature range for the BQ24725RGRT is -40°C to 85°C. However, the device can operate up to 125°C junction temperature.
