BQ24745RHDRG4 - Texas Instruments

Description: IC SYNC SW-MODE BAT CHRGR 28VQFN

Download BQ24745RHDRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

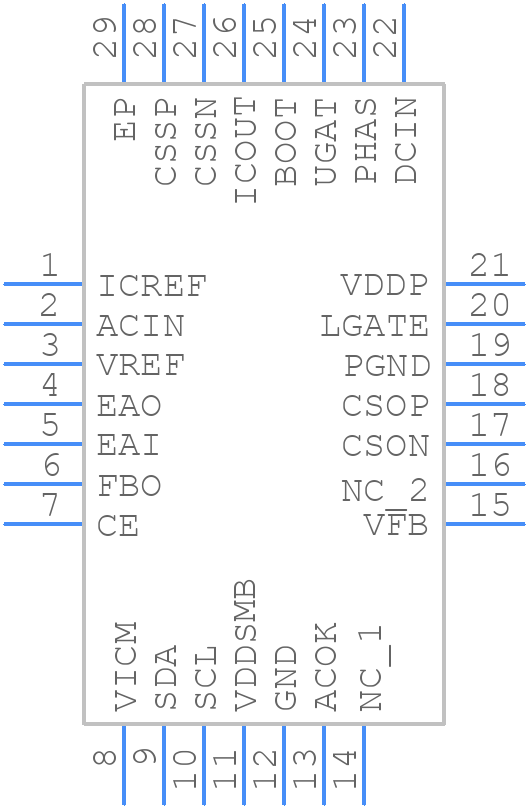

BQ24745RHDRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24745RHDRG4 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHD0028B
click to zoom
3D Models
BQ24745RHDRG4 - Texas Instruments - 3D model - Quad Flat No-Lead - RHD0028B
click to zoom

BQ24745RHDRG4 Details

  • Manufacturer Part Number:

    BQ24745RHDRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    Thermal Shutdown:155C

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

BQ24745RHDRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'BQ24745 PCB Layout Guidelines' (SLUAUH5) for optimal performance and thermal management.
  • The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. Texas Instruments provides a inductor selection guide in the datasheet, but it's also recommended to use the WEBENCH Power Designer tool to find the optimal inductor for your design.
  • The maximum ambient temperature for the BQ24745RHDRG4 is 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • The BQ24745RHDRG4 has built-in OVP and UVP features, but they need to be configured and enabled through the device's registers. Refer to the datasheet and the application note 'BQ24745 Overvoltage and Undervoltage Protection' (SLUAUH6) for more information.
