BQ24750RHDT - Texas Instruments

Description: Battery Management MultI-Cell Sync Swit mode Charger

Download BQ24750RHDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

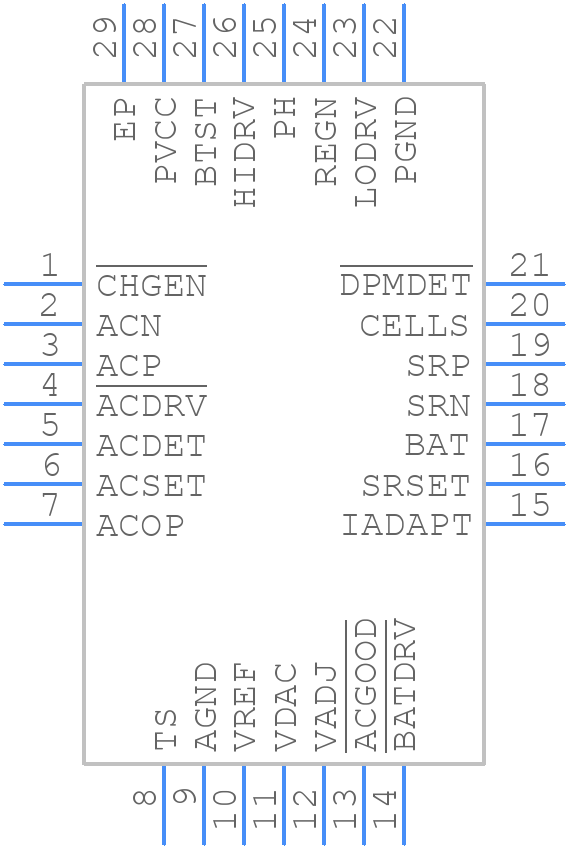

BQ24750RHDT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24750RHDT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHD (S-PVQFN-N28)
click to zoom
3D Models
BQ24750RHDT - Texas Instruments - 3D model - Quad Flat No-Lead - RHD (S-PVQFN-N28)
click to zoom

BQ24750RHDT Details

  • Manufacturer Part Number:

    BQ24750RHDT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY MANAGEMENT CIRCUIT

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    5 V

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

BQ24750RHDT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'BQ24750RHDT Layout Guidelines' (SLUAUH7) for optimal performance and thermal management.
  • The selection of external components such as inductors, capacitors, and resistors depends on the specific application requirements. Texas Instruments provides a component selection guide in the datasheet, but it's also recommended to use the WEBENCH Power Designer tool to simplify the component selection process.
  • The maximum ambient temperature for the BQ24750RHDT is 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliable operation. Refer to the thermal derating curves in the datasheet for more information.
  • The BQ24750RHDT has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values can be calculated using the equations provided in the datasheet. Additionally, the device also has a programmable overcurrent threshold using the I2C interface.
  • The BQ24750RHDT is rated for a maximum input voltage of 24V, but it can be used in high-voltage applications with the use of an external voltage regulator or a DC-DC converter to step down the input voltage. However, it's essential to ensure that the device's absolute maximum ratings are not exceeded.
