Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the power traces short and wide, and using a solid ground plane to reduce EMI.
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. TI provides a list of recommended inductors in the datasheet, but it's also recommended to consult with inductor manufacturers and use online tools to select the optimal inductor for your design.
The BQ24751BRHDT is rated for operation up to 105°C ambient temperature, but it's recommended to derate the device for reliable operation. TI provides a thermal derating curve in the datasheet to help designers determine the maximum ambient temperature for their specific application.
The BQ24751BRHDT has built-in OVP and UVP features, but they require external resistors to set the threshold voltages. TI provides a detailed description of the OVP and UVP circuits in the datasheet, and designers can use online tools to calculate the required resistor values.
The recommended input capacitor type is a low-ESR ceramic capacitor, and the value depends on the specific application requirements, such as the input voltage and output current. TI provides a recommended input capacitor value in the datasheet, but it's also recommended to consult with capacitor manufacturers and use online tools to select the optimal capacitor for your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24751BRHDT Overview

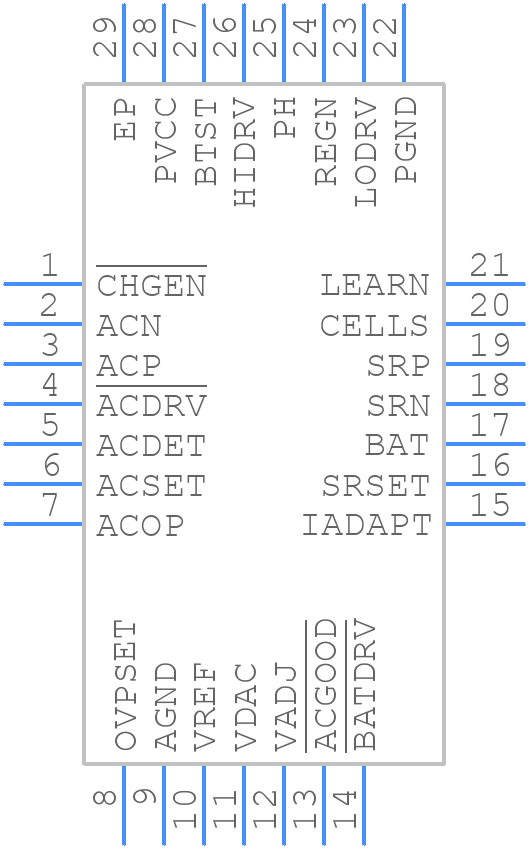

Use the download button to access the BQ24751BRHDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ247,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
