Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the IC. Additionally, ensure that the thermal pad is connected to a solid ground plane to improve heat dissipation.
The selection of external components, such as resistors, capacitors, and inductors, depends on the specific application and charging requirements. Refer to the datasheet and application notes for guidance on component selection. TI also provides a web-based tool, the 'Battery Charger Designer,' to help with component selection and design.
The BQ24753ARHDR can support up to 3A of charging current and 12V of charging voltage. However, the actual charging current and voltage will depend on the specific application and the settings of the charger. Refer to the datasheet and application notes for more information.
The BQ24753ARHDR has built-in overcharge protection features, such as charge termination and recharge detection. To prevent battery damage, ensure that the charger is configured correctly, and the battery is properly monitored. Implementing additional protection mechanisms, such as temperature monitoring and battery voltage monitoring, can also help prevent battery damage.
Yes, the BQ24753ARHDR can be used for charging multiple batteries in parallel. However, it's essential to ensure that the charger is configured correctly, and the batteries are properly balanced. TI provides application notes and design guides for charging multiple batteries in parallel.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24753ARHDR Overview

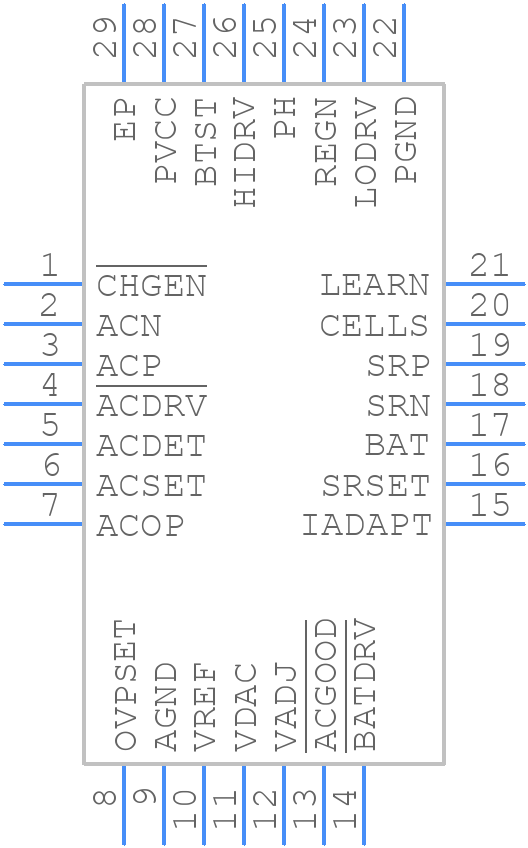

Use the download button to access the BQ24753ARHDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ247,
or try a keyword search, such as Power Management Circuits
