BQ24780SRUYT - Texas Instruments

Description: 1-4 Cell Hybrid Power Boost Mode Battery Charge Controller with Power and Processor Hot Monitoring

Download BQ24780SRUYT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

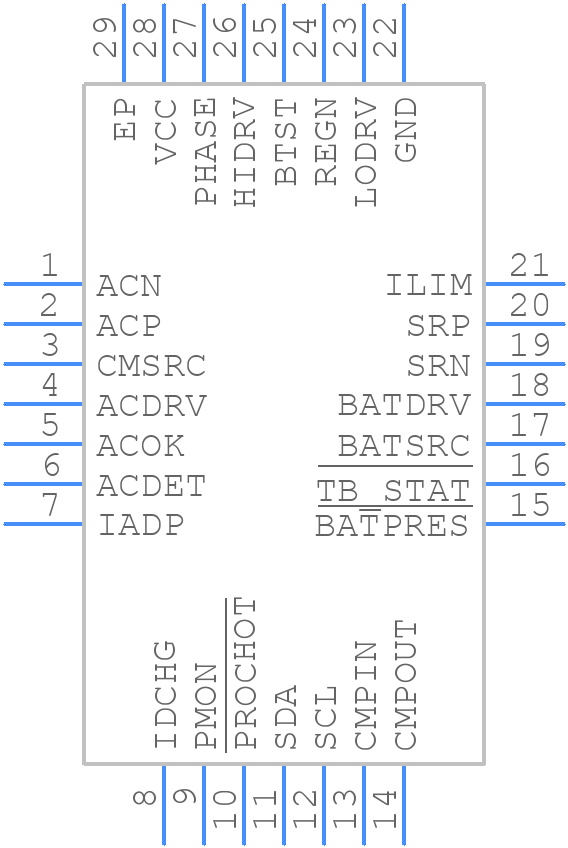

BQ24780SRUYT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24780SRUYT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - BQ24780SRUYT
click to zoom
3D Models
BQ24780SRUYT - Texas Instruments - 3D model - Quad Flat No-Lead - BQ24780SRUYT
click to zoom

BQ24780SRUYT Details

  • Manufacturer Part Number:

    BQ24780SRUYT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.75 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24780SRUYT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the high-current paths is recommended. Ensure that the input and output capacitors are placed close to the IC, and the high-current paths are routed away from sensitive analog signals.
  • Use the TI's WEBENCH Power Designer tool to generate a customized compensation network based on your specific application requirements. You can also refer to the application note SLUA623 for guidance on manual compensation design.
  • The maximum input voltage rating is 24V, but it's recommended to operate within 18V to ensure reliable operation and minimize the risk of damage.
  • The BQ24780SRUYT is rated for operation up to 105°C, but it's essential to ensure proper thermal management and heat sinking to prevent overheating. Use thermal interface materials and follow the recommended layout guidelines to minimize thermal resistance.
  • The BQ24780SRUYT has a built-in overcurrent protection feature. Connect a sense resistor (Rs) between the VIN and GND pins, and set the overcurrent threshold (Ilim) using the ILIM pin. The IC will automatically limit the output current when the sense voltage exceeds the threshold.
