Texas Instruments provides a recommended layout and placement guide in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ25040DQCT has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the bqStudio software, which allows designers to customize the charging profile for their specific battery chemistry and application requirements.
While the datasheet specifies an operating temperature range of -40°C to 85°C, the maximum ambient temperature range for the BQ25040DQCT depends on the specific application and thermal design. Texas Instruments recommends consulting the thermal design guidelines in the application note SLUA623 to ensure the device operates within a safe temperature range.
Yes, the BQ25040DQCT can be used with battery packs that have multiple cells in series. However, the device is designed to charge a single lithium-ion cell, and additional circuitry and monitoring may be required to ensure safe and balanced charging of multiple cells in series.
The BQ25040DQCT has built-in OVP and UVP features, but they require external resistors and capacitors to set the voltage thresholds. Texas Instruments provides a detailed design guide in the application note SLUA623, which includes examples and calculations for implementing OVP and UVP with the BQ25040DQCT.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
BQ25040DQCT Overview

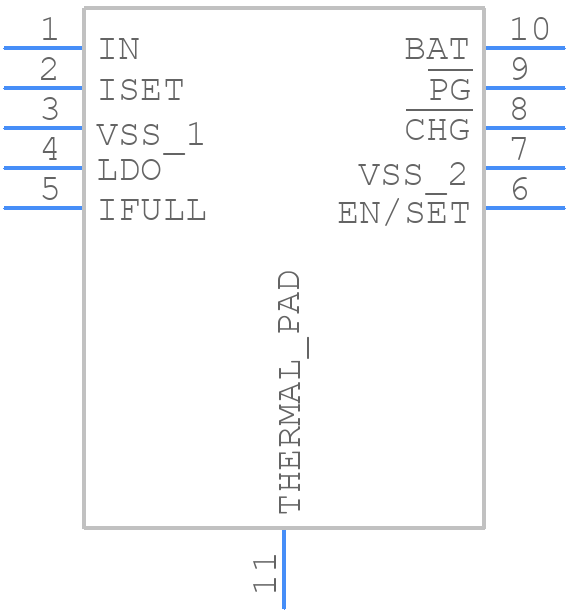

Use the download button to access the BQ25040DQCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ250,
or try a keyword search, such as Power Management Circuits
