BQ25060DQCR - Texas Instruments

Description: 1A, Single-Input, Single Cell Li-Ion Battery Charger with 50mA LDO

Download BQ25060DQCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

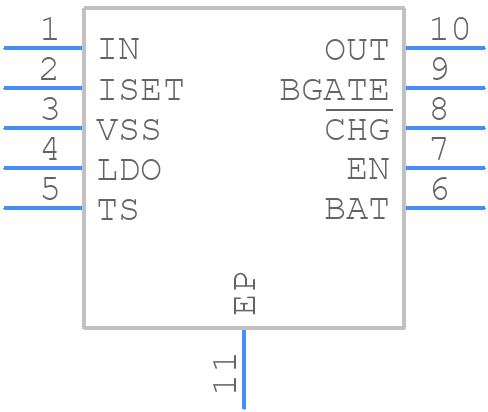

BQ25060DQCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25060DQCR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DQC0010A
click to zoom
3D Models
BQ25060DQCR - Texas Instruments - 3D model - Small Outline No-lead - DQC0010A
click to zoom

BQ25060DQCR Details

  • Manufacturer Part Number:

    BQ25060DQCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    10.2 V

  • Input Voltage-Min:

    4.4 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    10.2 V

  • Supply Voltage-Min (Vsup):

    4.4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

BQ25060DQCR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ25060DQCR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The choice of input and output capacitors depends on the specific application and requirements. Generally, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
  • The BQ25060DQCR can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The output voltage of the BQ25060DQCR can be adjusted by changing the resistor divider network connected to the FB pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 / R2 + 1), where R1 and R2 are the resistors in the divider network.
