BQ25120F3AYFPT - Texas Instruments

Description: Battery Management Automotive multi-channel smart half-bridge gate drivers EVM

Download BQ25120F3AYFPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

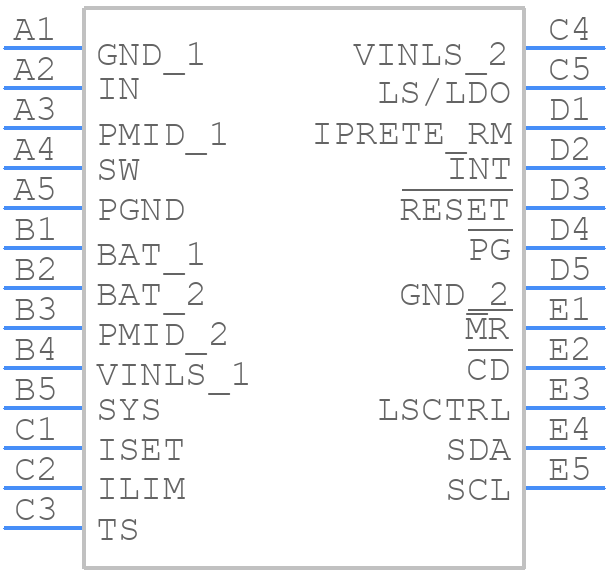

BQ25120F3AYFPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25120F3AYFPT - Texas Instruments PCB footprint - BGA - BGA - YFP (S-XBGA-N25)
click to zoom
3D Models
BQ25120F3AYFPT - Texas Instruments - 3D model - BGA - YFP (S-XBGA-N25)
click to zoom

BQ25120F3AYFPT Details

  • Manufacturer Part Number:

    BQ25120F3AYFPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.4 V

  • JESD-30 Code:

    R-PBGA-B25

  • JESD-609 Code:

    e1

  • Length:

    2.53 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA25,5X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3.4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +3.6V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.468 mm

BQ25120F3AYFPT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the application note SLUA945, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and current. Texas Instruments provides a inductor selection guide in the datasheet, and also recommends using the WEBENCH Power Designer tool to find the optimal inductor for the design.
  • The BQ25120F3AYFPT can operate in an ambient temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. The device's thermal performance can be affected by the PCB layout, thermal vias, and heat sinking.
  • The BQ25120F3AYFPT has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by selecting the appropriate resistor values. Texas Instruments provides a detailed example of OVP implementation in the application note SLUA945.
  • The minimum input voltage required for the BQ25120F3AYFPT to operate is 2.5V, but the device can operate down to 2.3V with reduced performance. The recommended input voltage range is 2.5V to 5.5V.
