Texas Instruments provides a recommended layout and placement guide in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
The BQ25121AYFPR has a programmable charging current and voltage. To optimize these settings, you'll need to consult the battery manufacturer's specifications and adjust the charger's settings accordingly. You can use the I2C interface to program the charger's registers and adjust the charging current and voltage to match your battery's requirements.
The BQ25121AYFPR has an operating temperature range of -40°C to 85°C. However, the maximum ambient temperature may be limited by the specific application and the thermal design of the system. It's essential to ensure proper thermal management and heat dissipation to prevent overheating and ensure reliable operation.
The BQ25121AYFPR is designed to support standard Li-Ion/Li-Polymer battery chemistries. While it may be possible to use it with non-standard chemistries, it's not recommended without thorough testing and validation. The charger's settings and algorithms are optimized for standard battery chemistries, and using it with non-standard chemistries may result in reduced performance, safety issues, or damage to the battery or charger.
The BQ25121AYFPR has built-in fault detection and error reporting mechanisms. You can use the I2C interface to monitor the charger's status and detect faults, such as over-temperature, over-voltage, or short-circuit conditions. It's essential to implement proper fault handling and error detection mechanisms in your system to ensure safe and reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25121AYFPR Overview

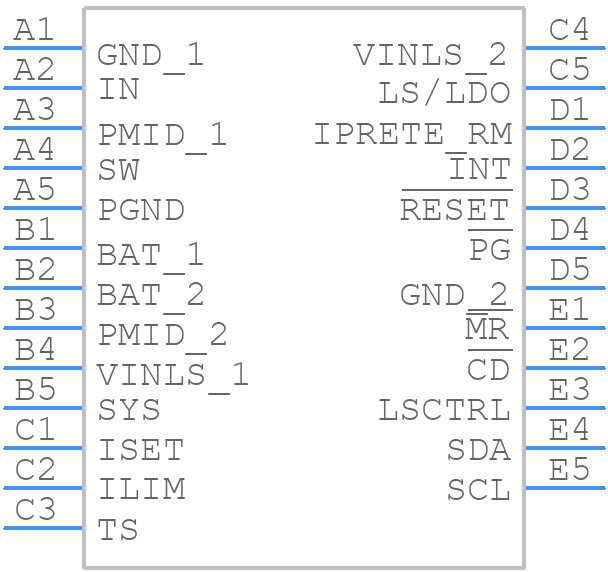

Use the download button to access the BQ25121AYFPR schematic symbol, PCB footprint, and 3D model.
