BQ25121YFPT - Texas Instruments

Description: Battery Management 700nA Low Iq Batt Charge Mngt

Download BQ25121YFPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

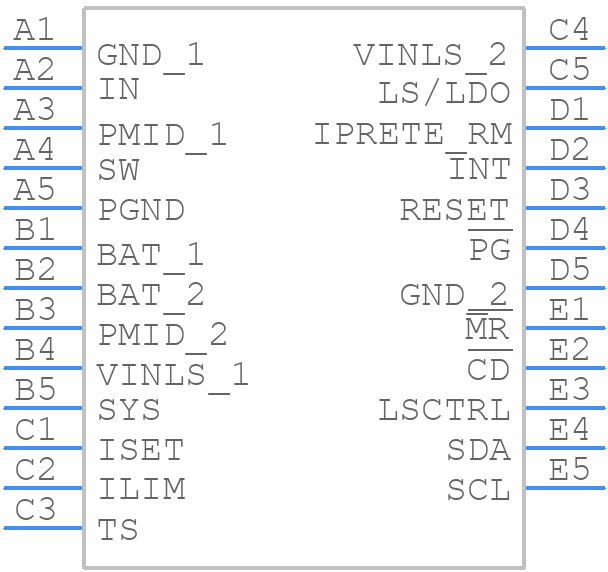

BQ25121YFPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25121YFPT - Texas Instruments PCB footprint - BGA - BGA - YFP0025
click to zoom
3D Models
BQ25121YFPT - Texas Instruments - 3D model - BGA - YFP0025
click to zoom

BQ25121YFPT Details

  • Manufacturer Part Number:

    BQ25121YFPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-05-14

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.4 V

  • JESD-30 Code:

    R-PBGA-B25

  • JESD-609 Code:

    e1

  • Length:

    2.53 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA25,5X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3.4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.468 mm

BQ25121YFPT Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ25121YFPT involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors for the BQ25121YFPT depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet provides more information.
  • The BQ25121YFPT is rated for operation from -40°C to 85°C. However, the device can operate at higher temperatures with derating. Consult the datasheet for more information on thermal derating.
  • The BQ25121YFPT has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold is 5.5V. For more information, refer to the datasheet and application notes.
  • The recommended input voltage range for the BQ25121YFPT is 3.5V to 5.5V. Operating the device outside this range may affect its performance and reliability.
