Texas Instruments provides a recommended layout and placement guide in the application note SLUA945, which includes guidelines for component placement, routing, and thermal considerations to ensure optimal performance and minimize noise.
The BQ25122YFPT has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the BQ25122YFPT-EVM, which allows you to customize the charging profile for your specific battery chemistry. You can also refer to the application note SLUA946 for more information on charging profile optimization.
The BQ25122YFPT has an operating ambient temperature range of -40°C to 85°C, but it's recommended to derate the device's performance at higher temperatures. Refer to the datasheet for more information on thermal derating and design considerations.
The BQ25122YFPT is optimized for Li-Ion/Li-Polymer batteries, but it can be used with other battery chemistries with some modifications. However, Texas Instruments recommends consulting with their support team or a battery expert to ensure the device is properly configured and optimized for the specific battery chemistry.
The BQ25122YFPT has built-in OVP and UVP features, but they require external components to implement. Texas Instruments provides a detailed design guide in the application note SLUA947, which includes schematics and component selection guidelines for OVP and UVP implementation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25122YFPT Overview

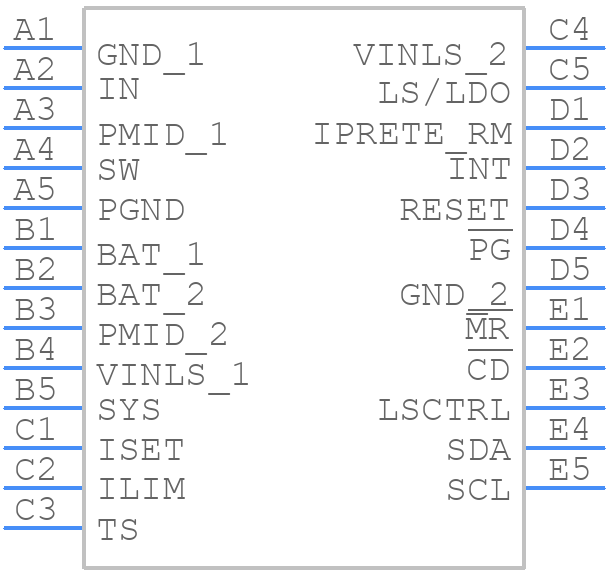

Use the download button to access the BQ25122YFPT schematic symbol, PCB footprint, and 3D model.
