Description:BQ25155 I 2C Controlled 1-Cell 500-mA Linear Battery Charger With 10-nA Ship Mode, PowerPath With Regulated System (PMID) Voltage, ADC, and LDO
A good PCB layout for the BQ25155YFPR involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, it's recommended to use a separate power plane for the battery and the system, and to minimize the length of the traces between the device and the capacitors.
The selection of external components for the BQ25155YFPR depends on the specific application requirements. For example, the input capacitor should be selected based on the input voltage and current requirements, while the output capacitor should be selected based on the output voltage and current requirements. The datasheet provides guidelines for selecting the external components, and TI also provides a component selection tool to help with the selection process.
The BQ25155YFPR has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To ensure reliable operation, it's recommended to keep the device junction temperature below 125°C. This can be achieved by providing adequate heat sinking, using a thermal pad, and ensuring good airflow around the device.
Troubleshooting issues with the BQ25155YFPR involves checking the input and output voltages, currents, and temperatures. It's also recommended to check the device's status pins and fault flags to identify the source of the issue. TI also provides a troubleshooting guide and application notes to help with debugging.
The BQ25155YFPR is designed to meet the EMI and EMC requirements of most applications. However, it's still important to follow good PCB layout practices, use shielding and filtering as needed, and ensure that the device is properly decoupled to minimize EMI and EMC issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25155YFPR Overview

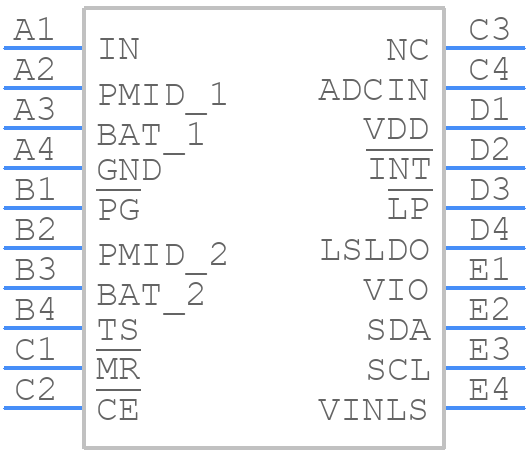

Use the download button to access the BQ25155YFPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ251,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
Suggested Parts
If you searched for BQ25155YFPR, you might also be interested in these parts:
