A good PCB layout for the BQ25157YFPR involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of external components for the BQ25157YFPR depends on the specific application requirements. For example, the input capacitor should be selected based on the input voltage and current requirements, while the output capacitor should be selected based on the output voltage and current requirements. TI provides a component selection guide in the datasheet to help with this process.
The BQ25157YFPR has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and airflow to keep the device temperature below 125°C. A thermal pad on the bottom of the device helps to dissipate heat, and a thermal interface material can be used to improve heat transfer.
Troubleshooting issues with the BQ25157YFPR involves checking the input voltage, output voltage, and current consumption. Use an oscilloscope to check for voltage drops, noise, and oscillations. Check the PCB layout and component selection to ensure they meet the recommended specifications. Consult the datasheet and application notes for troubleshooting guides and FAQs.
The BQ25157YFPR is designed to meet EMI and EMC standards, but it's still important to follow good PCB layout practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. Additionally, ensure that the device is properly decoupled and that the input and output capacitors are selected to minimize noise and EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25157YFPR Overview

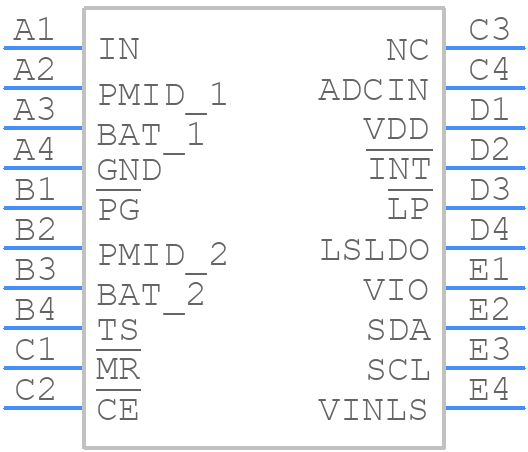

Use the download button to access the BQ25157YFPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ251,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
