BQ25170JDSGR - Texas Instruments

Description: Battery Management 800-mA JEITA-compliant linear battery charger for 1-cell Li-Ion and LiFePO4

Download BQ25170JDSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

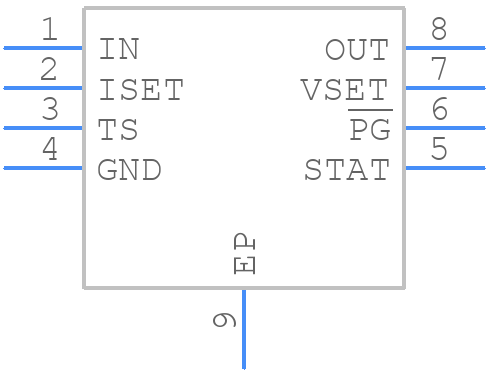

BQ25170JDSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25170JDSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG
click to zoom
3D Models
BQ25170JDSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG
click to zoom

BQ25170JDSGR Details

  • Manufacturer Part Number:

    BQ25170JDSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

BQ25170JDSGR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ25170JDSGR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors for the BQ25170JDSGR depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet provides more information.
  • The BQ25170JDSGR is rated for operation from -40°C to 85°C. However, the device can be operated at higher temperatures with derating. Consult the datasheet for more information on temperature derating.
  • The BQ25170JDSGR has a built-in overcurrent protection feature. To implement it, connect a sense resistor in series with the output and connect the sense pin to the device. The device will limit the output current to the programmed value. Consult the datasheet for more information on overcurrent protection.
  • Yes, the BQ25170JDSGR is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. TI also provides a reliability report and other resources to support high-reliability applications.
