BQ25180YBGR - Texas Instruments

Description: Charger IC Lithium Ion/Polymer, Lithium Iron Phosphate 8-DSBGA (1.6x1.1)

Download BQ25180YBGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

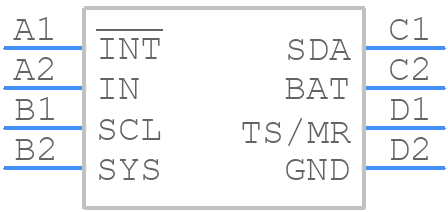

BQ25180YBGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25180YBGR - Texas Instruments PCB footprint - BGA - BGA - YBG0008
click to zoom
3D Models
BQ25180YBGR - Texas Instruments - 3D model - BGA - YBG0008
click to zoom

BQ25180YBGR Details

  • Manufacturer Part Number:

    BQ25180YBGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    R-PBGA-B8

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Supply Current-Max (Isup):

    1100 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

BQ25180YBGR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ25180YBGR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors for the BQ25180YBGR depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet provides more information.
  • The BQ25180YBGR is rated for operation from -40°C to 85°C. However, the device can be operated at higher temperatures with derating. Consult the datasheet for more information on thermal derating.
  • The BQ25180YBGR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values can be calculated using the equations provided in the datasheet.
  • Yes, the BQ25180YBGR is suitable for battery-powered devices. It has a low quiescent current of 15uA, making it suitable for battery-powered applications. However, the device's power consumption should be considered in the overall system design.
