A good PCB layout for the BQ25303JRTER involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper power-up and configuration, follow the recommended power-up sequence: VCC, EN, and then VIN. Also, make sure to configure the device according to the datasheet, including setting the correct voltage regulator output voltage and enabling/disabling the device as needed.
The BQ25303JRTER has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. A thermal via or a thermal pad connected to a heat sink can also be used to improve heat dissipation. Additionally, ensure good airflow around the device and avoid blocking the airflow.
To troubleshoot issues with the BQ25303JRTER, start by checking the power-up sequence, ensuring that the device is properly configured, and verifying that the input voltage is within the recommended range. Use an oscilloscope to check the output voltage and current, and verify that the device is not overheating. Consult the datasheet and application notes for more troubleshooting guidance.
To minimize EMI and EMC issues, use a shielded enclosure, keep the device and its components away from radiating sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, ensure that the PCB layout is designed to minimize radiation and that the device is properly grounded.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25303JRTER Overview

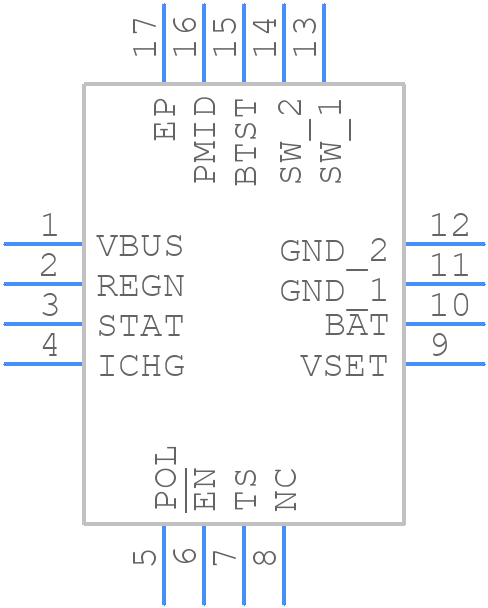

Use the download button to access the BQ25303JRTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ253,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
