The recommended layout and placement for the BQ25505RGRT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the loop area of the power traces to reduce EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To optimize the BQ25505RGRT for low-light or indoor harvesting, use a high-efficiency solar panel, maximize the solar panel area, and adjust the V_OK threshold to a lower value (e.g., 1.8V) to enable energy harvesting at lower light levels.
The BQ25505RGRT can handle input voltages up to 22V, but it's recommended to limit the input voltage to 12V to ensure reliable operation and prevent damage to the device.
To configure the BQ25505RGRT for a specific battery chemistry, adjust the V_BAT_REG and V_OK thresholds according to the battery's recommended charging voltage and end-of-charge voltage. For example, for a Li-ion battery, set V_BAT_REG to 4.2V and V_OK to 4.1V.
The EN (enable) pin is used to enable or disable the BQ25505RGRT. When EN is high, the device is enabled, and when EN is low, the device is disabled. Use the EN pin to control the power path and optimize system power consumption.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25505RGRT Overview

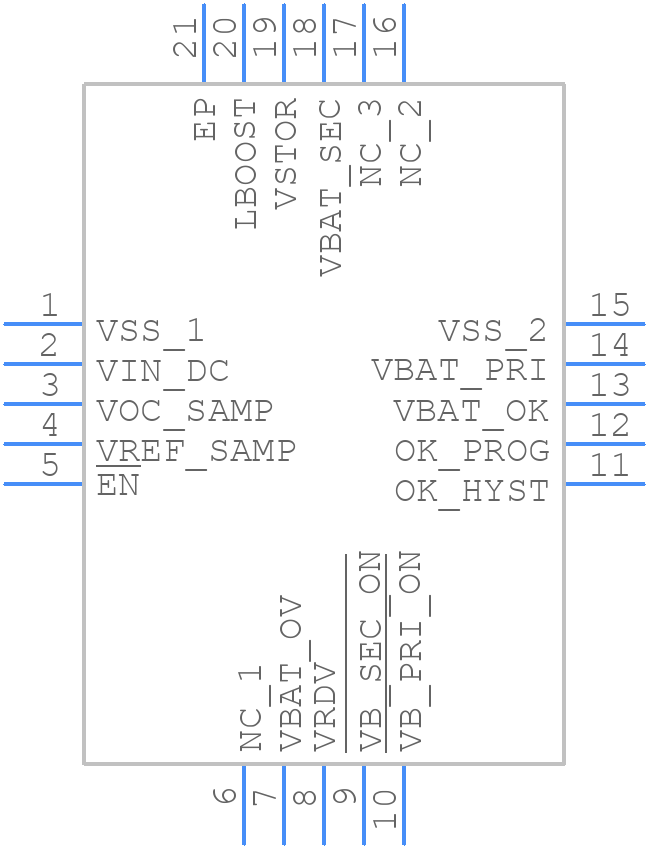

Use the download button to access the BQ25505RGRT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ255,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
