The recommended layout and placement for the BQ25570RGRR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the loop area of the power traces to reduce EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To optimize the BQ25570RGRR for low-light or indoor harvesting, use a high-sensitivity solar panel, increase the input capacitance, and adjust the V_OK threshold to a lower value. Additionally, consider using a maximum power point tracking (MPPT) algorithm to optimize energy harvesting.
The BQ25570RGRR can handle input voltages up to 22V, but it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device.
The BQ25570RGRR can be configured for different battery chemistries by adjusting the V_BAT_REG and V_OK thresholds. For example, for Li-ion batteries, set V_BAT_REG to 4.2V and V_OK to 3.8V. For NiMH batteries, set V_BAT_REG to 1.4V and V_OK to 1.2V.
The EN (enable) pin on the BQ25570RGRR is used to enable or disable the device. When EN is high, the device is enabled and operates normally. When EN is low, the device is disabled and enters a low-power state.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25570RGRR Overview

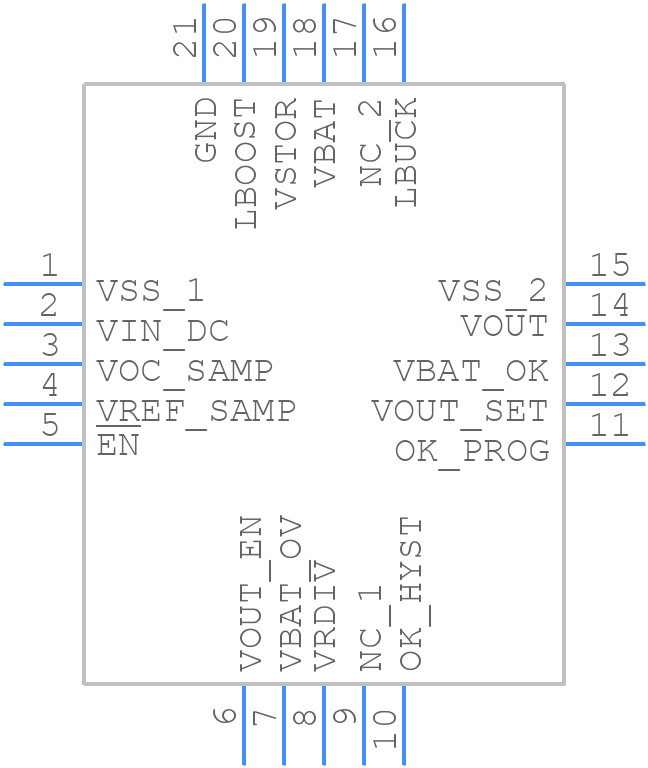

Use the download button to access the BQ25570RGRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ255,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
