Texas Instruments provides a recommended layout and placement guide in the application note SLUA645, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The BQ25600DYFFR has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the BQ25600 Charging Profile Optimization Tool, which helps engineers optimize the charging profile for their specific battery chemistry and application requirements.
While the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device. Higher input voltages may require additional protection circuits.
The BQ25600DYFFR has a built-in OVP feature, but it's recommended to add an external OVP circuit to provide additional protection against high-voltage transients. Texas Instruments provides a reference design for OVP implementation in the application note SLUA646.
The BQ25600DYFFR has a high-power density, and thermal management is critical to ensure reliable operation. Texas Instruments recommends using a thermal pad, thermal vias, and a heat sink to dissipate heat, and provides thermal design guidelines in the application note SLUA644.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25600DYFFR Overview

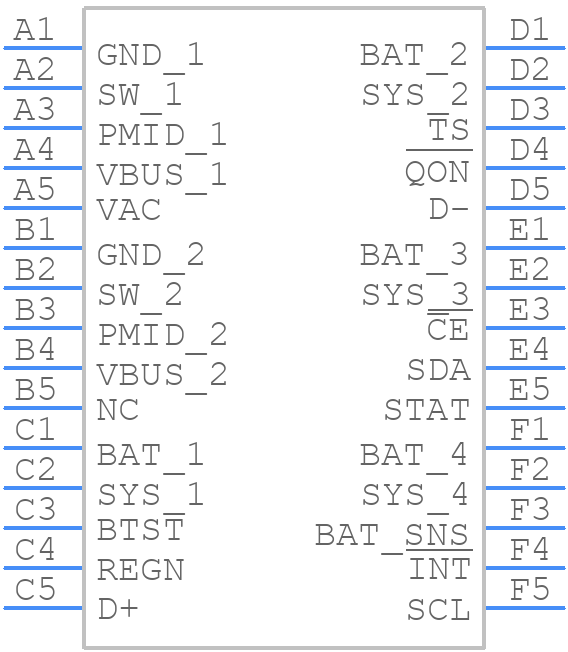

Use the download button to access the BQ25600DYFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ256,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
