BQ25600YFFR - Texas Instruments

Description: I2C Controlled Single Cell 3-A Fast Charger with High Input Voltage and Power Path

Download BQ25600YFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

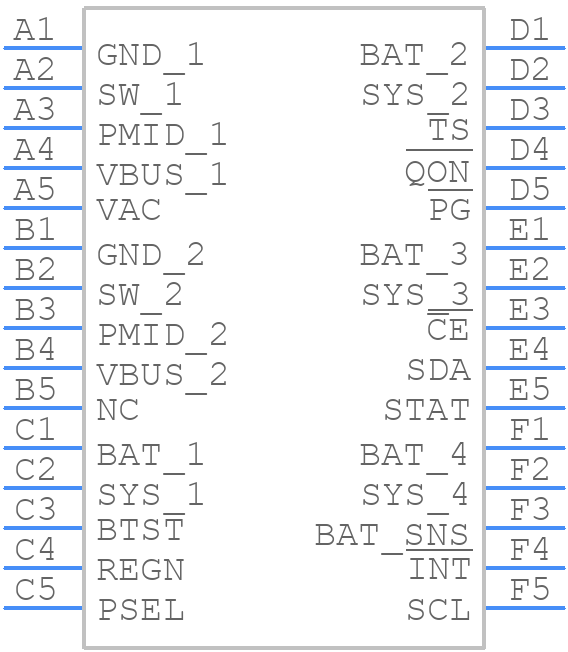

BQ25600YFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25600YFFR - Texas Instruments PCB footprint - BGA - BGA - YFF0030
click to zoom
3D Models
BQ25600YFFR - Texas Instruments - 3D model - BGA - YFF0030
click to zoom

BQ25600YFFR Details

  • Manufacturer Part Number:

    BQ25600YFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-07-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    13.5 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    R-XBGA-B30

  • JESD-609 Code:

    e1

  • Length:

    2.362 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA30,5X6,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    13.5 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +0.265V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.9615 mm

BQ25600YFFR Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the BQ25600YFFR can be found in the Texas Instruments application note SLUA623, which provides guidelines for PCB layout, component placement, and thermal management.
  • The BQ25600YFFR has a programmable charging profile, and the optimal profile depends on the specific battery chemistry and characteristics. TI provides a charging profile optimization tool, the BQ25600YFFR-EVM, which can help engineers optimize the charging profile for their specific battery.
  • The BQ25600YFFR can support up to 3A of charging current, but the actual maximum current depends on the specific application and thermal design. Engineers should consult the datasheet and application notes for guidance on thermal design and current limiting.
  • The BQ25600YFFR has a built-in OVP feature that can be enabled through the I2C interface. Engineers can set the OVP threshold voltage and timeout period using the BQ25600YFFR's registers. TI provides example code and application notes for implementing OVP with the BQ25600YFFR.
  • The BQ25600YFFR is designed to support standard lithium-ion battery chemistries, but it can be adapted for use with non-standard chemistries with careful design and testing. Engineers should consult the datasheet and application notes for guidance on adapting the BQ25600YFFR for non-standard battery chemistries.
