A good PCB layout for the BQ25606RGET involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
The BQ25606RGET has a programmable charging current and voltage. To optimize these settings for your specific battery, refer to the battery manufacturer's recommendations and use the BQ25606RGET's I2C interface to adjust the charging parameters. TI provides a software development kit (SDK) to help with this process.
The BQ25606RGET has a thermal shutdown feature to prevent overheating. Ensure reliable operation by providing adequate heat sinking, keeping the IC away from heat sources, and following TI's thermal design guidelines. The datasheet provides thermal resistance and power dissipation information to help with thermal design.
The BQ25606RGET has built-in OVP and UVP features. To implement these features, connect the OVP and UVP pins to the desired voltage thresholds using external resistors and configure the IC using the I2C interface. Refer to the datasheet and application notes for specific implementation details.
To ensure EMI and EMC compliance, follow TI's guidelines for PCB layout, component selection, and shielding. Use a metal shield can or a shielded inductor to reduce EMI emissions. Additionally, ensure that the system meets the relevant regulatory standards, such as CISPR 22 and FCC Part 15.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25606RGET Overview

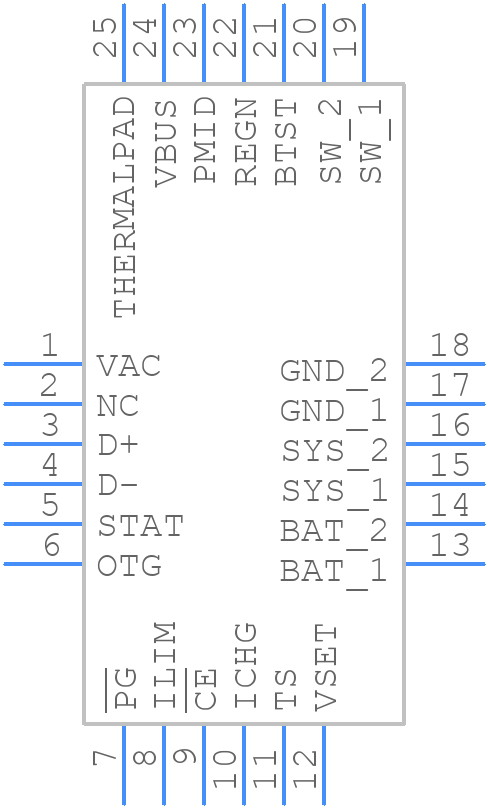

Use the download button to access the BQ25606RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ256,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
