The recommended layout and placement for the BQ25616RTWT involves placing the device close to the battery, using a 4-layer PCB with a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to place the input capacitors close to the VIN pin and the output capacitors close to the VOUT pin.
To optimize the charging current and voltage for your specific battery, you can use the ISET pin to adjust the charging current and the VREG pin to adjust the charging voltage. You can also use the BQ25616RTWT's built-in battery detection and charging algorithms to optimize the charging profile for your specific battery.
The BQ25616RTWT has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To minimize thermal issues, it's recommended to provide adequate heat sinking, use a thermally conductive PCB material, and keep the device away from heat sources.
The BQ25616RTWT has built-in OVP and UVP features that can be enabled by connecting the OVP and UVP pins to the desired voltage threshold. You can also use external components to implement custom OVP and UVP thresholds.
To minimize EMI and EMC issues, it's recommended to use a shielded enclosure, keep the device away from noise sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, you can use the BQ25616RTWT's built-in spread-spectrum clocking feature to reduce EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25616RTWT Overview

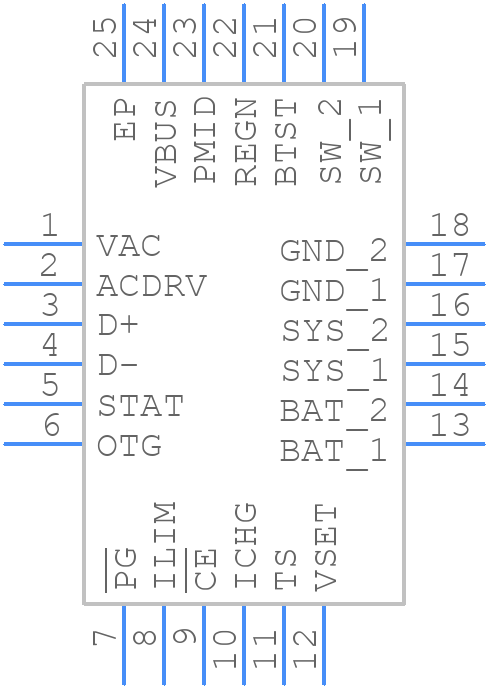

Use the download button to access the BQ25616RTWT schematic symbol, PCB footprint, and 3D model.
