BQ25672RQMR - Texas Instruments

Description: I²C controlled, 1- to 4-cell, 3-A buck battery charger with dual-input selector and integrated ADC

Download BQ25672RQMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

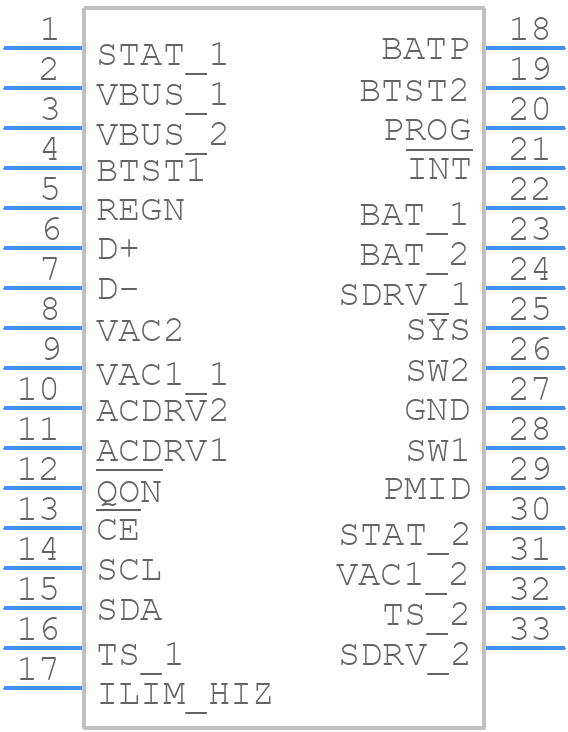

BQ25672RQMR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25672RQMR - Texas Instruments PCB footprint - Other - Other - RQM0029A_1
click to zoom
3D Models
BQ25672RQMR - Texas Instruments - 3D model - Other - RQM0029A_1
click to zoom

BQ25672RQMR Details

  • Manufacturer Part Number:

    BQ25672RQMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Thermal Shutdown:85C

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    S-PQCC-N29

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    29

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC29,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3300 mA

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +26V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ25672RQMR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the power traces is recommended. The datasheet provides a recommended layout, but it's essential to follow good PCB design practices to minimize noise and ensure proper operation.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value. The datasheet provides guidelines for inductor selection, but it's crucial to consider the specific application requirements and operating conditions.
  • The BQ25672RQMR can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range (4.5V to 12V) for optimal performance and to prevent damage to the device.
  • The BQ25672RQMR has a programmable charging profile using the I2C interface. Use the TI-provided software tools or consult the datasheet for specific register settings to configure the charging profile according to your application requirements.
  • The EN (enable) pin is used to enable or disable the charging function. Tie the EN pin to a logic high (VCC) to enable charging or a logic low (GND) to disable charging. You can also use the EN pin to implement a power-saving feature by disabling charging when the battery is fully charged.
