A good PCB layout for the BQ25703ARSNR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. TI provides a recommended layout in the datasheet and application notes.
To select the right inductor, consider the maximum current rating, inductance value, and DC resistance. The datasheet provides guidelines for inductor selection, and TI's WEBENCH tool can also be used to simulate and optimize the design.
The BQ25703ARSNR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. Ensure proper thermal management to maintain a safe junction temperature.
Yes, the BQ25703ARSNR is designed to withstand vibrations and can be used in high-vibration environments. However, ensure that the PCB is properly secured and the components are properly soldered to prevent mechanical stress.
To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify that the enable pin is properly biased, and check for short circuits or open circuits. Use an oscilloscope to analyze the switching waveforms and identify any anomalies.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25703ARSNR Overview

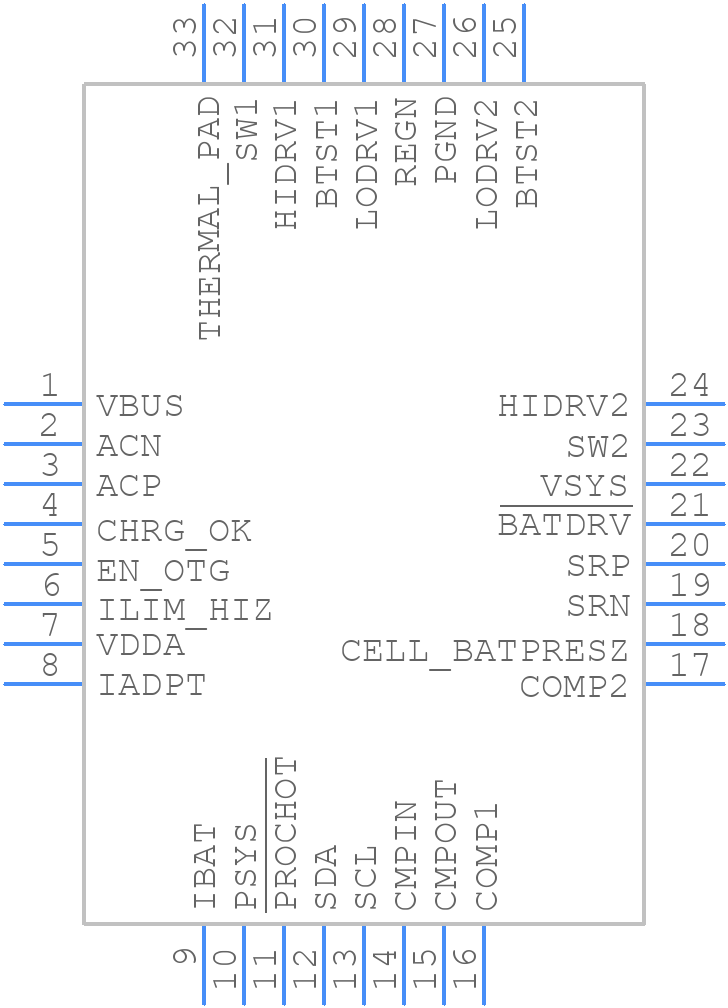

Use the download button to access the BQ25703ARSNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ257,
or try a keyword search, such as Power Management Circuits
