BQ25713RSNR - Texas Instruments

Description: NVDC I2C Battery Buck-Boost Charge Controller with System Power Monitor & Processor Hot Monitor

Download BQ25713RSNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

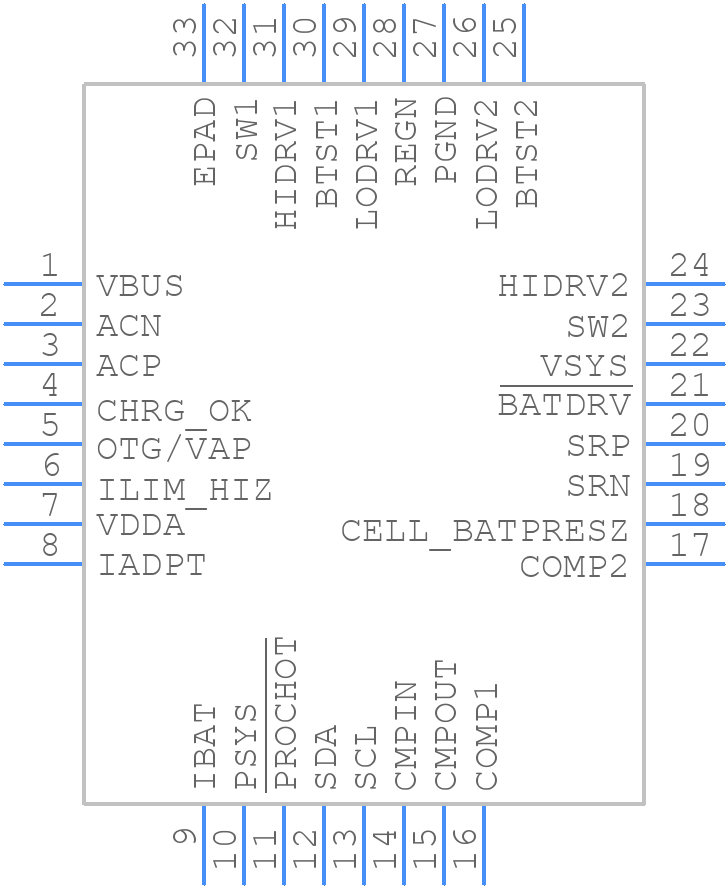

BQ25713RSNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25713RSNR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSN (S-PWQFN-N32)
click to zoom
3D Models
BQ25713RSNR - Texas Instruments - 3D model - Quad Flat No-Lead - RSN (S-PWQFN-N32)
click to zoom

BQ25713RSNR Details

  • Manufacturer Part Number:

    BQ25713RSNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-06-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    3.5 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ25713RSNR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ25713RSNR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • To select the right inductor for the BQ25713RSNR, consider the maximum current rating, inductance value, and DC resistance. TI provides a list of recommended inductors in the datasheet and application notes. You can also use online inductor selection tools or consult with a TI FAE.
  • The BQ25713RSNR has an operating ambient temperature range of -40°C to 85°C. However, the device can be operated at higher temperatures with derating. Consult the datasheet for more information on temperature derating.
  • The BQ25713RSNR has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rsns) between the VIN pin and the input capacitor. The device will limit the output current to the programmed value when the sense voltage exceeds 50 mV.
  • Yes, the BQ25713RSNR is suitable for battery-powered applications. It has a low quiescent current (IQ) of 10 μA, making it suitable for battery-powered devices. However, ensure that the input voltage is within the recommended range and the device is properly configured for battery-powered operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ25713RSNR Overview

Use the download button to access the BQ25713RSNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ257, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
