BQ25750RRVR - Texas Instruments

Description: Battery Management BQ25750RRVR

Download BQ25750RRVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

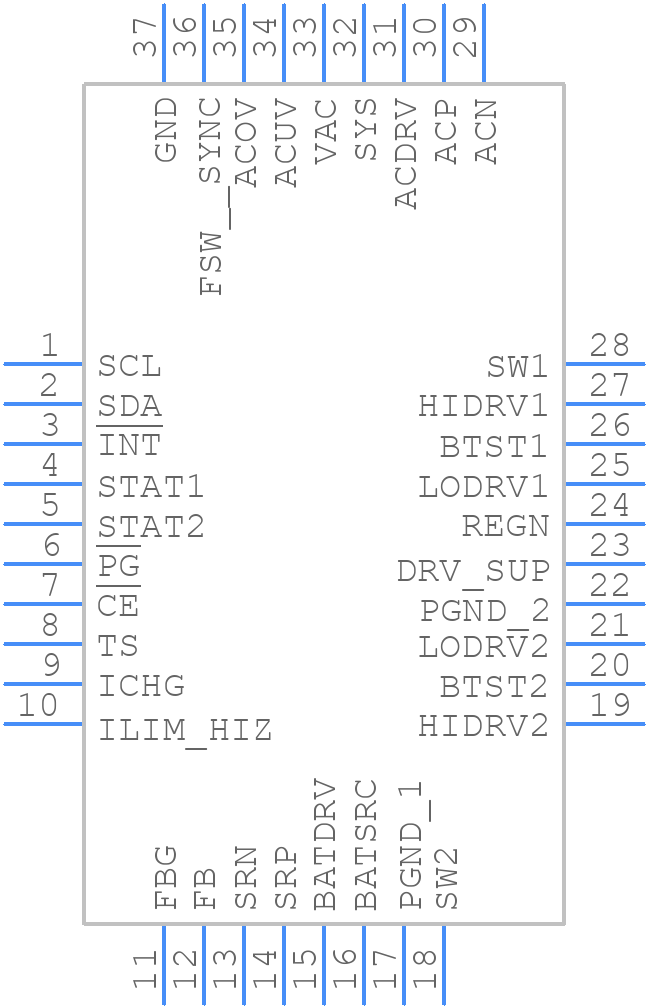

BQ25750RRVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25750RRVR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RRV0036A
click to zoom
3D Models
BQ25750RRVR - Texas Instruments - 3D model - Quad Flat No-Lead - RRV0036A
click to zoom

BQ25750RRVR Details

  • Manufacturer Part Number:

    BQ25750RRVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    70 V

  • Input Voltage-Min:

    4.2 V

  • JESD-30 Code:

    R-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.2X.24,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    70 V

  • Supply Voltage-Min (Vsup):

    4.2 V

  • Supply Voltage-Nom (Vsup):

    28 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

BQ25750RRVR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the application note SLUAUC7, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The BQ25750RRVR has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the BQ25750-EVM, which allows you to customize the charging profile for your specific battery chemistry. You can also refer to the application note SLUAUC6 for more information on charging profile optimization.
  • The BQ25750RRVR can handle input voltages up to 24V, but it's recommended to limit the input voltage to 18V to ensure reliable operation and prevent damage to the device.
  • The BQ25750RRVR has built-in OVP and UVP features, but you need to implement external circuitry to enable these features. Texas Instruments provides a detailed implementation guide in the application note SLUAUC5.
  • The BQ25750RRVR has a high-power density, and thermal management is critical to ensure reliable operation. Texas Instruments recommends using a thermal pad, thermal vias, and a heat sink to dissipate heat. You can refer to the application note SLUAUC4 for more information on thermal management.
