BQ25756ERRVR - Texas Instruments

Description: Battery Management Stand-alone or IC-controlled bidirectional buck-boost charge controller for up to 7S batteries 36-VQFN -40 to 125

Download BQ25756ERRVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

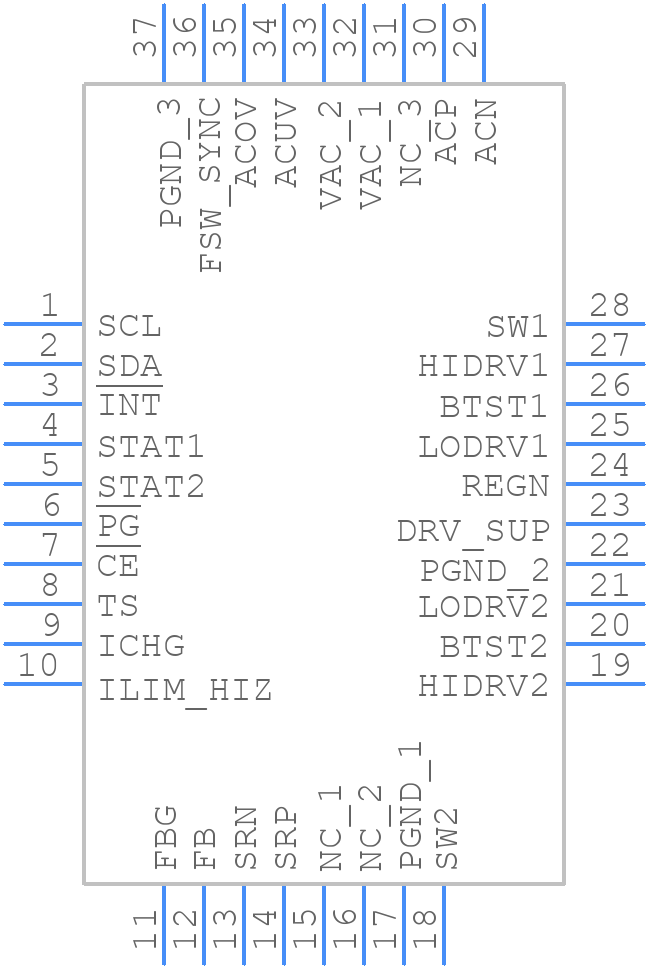

BQ25756ERRVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25756ERRVR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - BQ25758RRVR-
click to zoom
3D Models
BQ25756ERRVR - Texas Instruments - 3D model - Quad Flat No-Lead - BQ25758RRVR-
click to zoom

BQ25756ERRVR Details

  • Manufacturer Part Number:

    BQ25756ERRVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    36 V

  • JESD-30 Code:

    R-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.2X.24,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4.2 V

  • Supply Voltage-Nom (Vsup):

    28 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.1V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

BQ25756ERRVR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
  • The BQ25756ERRVR has a programmable charging profile, and Texas Instruments provides a charging profile calculator tool to help optimize the charging profile for specific battery chemistries. Additionally, the datasheet provides guidelines for setting the charging voltage and current limits.
  • The BQ25756ERRVR can handle input voltages up to 24V, but it's essential to ensure that the input voltage does not exceed the absolute maximum rating of 26V to prevent damage to the IC.
  • The BQ25756ERRVR has built-in OVP and UVP features, but they require external resistors and capacitors to set the threshold voltages. The datasheet provides a detailed description of how to implement OVP and UVP, and Texas Instruments also provides an application note with examples and calculations.
  • Yes, the BQ25756ERRVR is compatible with USB-C PD controllers, and Texas Instruments provides an application note that describes how to implement a USB-C PD charger using the BQ25756ERRVR and a PD controller.
