BQ25792RQMR - Texas Instruments

Description: BQ25792 I 2C Controlled, 1-4 Cell, 5-A Buck-Boost Battery Charger with Dual-Input Selector and USB PD 3.0 OTG Output

Download BQ25792RQMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

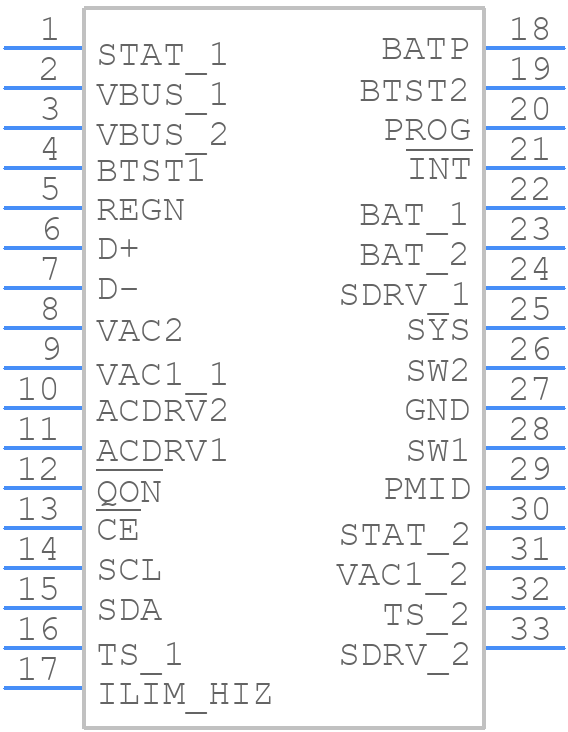

BQ25792RQMR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25792RQMR - Texas Instruments PCB footprint - Other - Other - RQM0029A
click to zoom
3D Models
BQ25792RQMR - Texas Instruments - 3D model - Other - RQM0029A
click to zoom

BQ25792RQMR Details

  • Manufacturer Part Number:

    BQ25792RQMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-10-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Thermal Shutdown:85C

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    3.6 V

  • JESD-30 Code:

    S-PQCC-N29

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    29

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC29,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3300 mA

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    3.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ25792RQMR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI.
  • The BQ25792RQMR has a programmable charging profile, and the optimal profile depends on the specific battery chemistry. Consult the battery manufacturer's recommendations and adjust the charging profile accordingly. You can also use TI's battery management software to customize the charging profile.
  • The BQ25792RQMR is rated for operation from -40°C to 85°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal design and heat dissipation to maintain optimal performance.
  • The BQ25792RQMR has built-in OVP and UVP features. For OVP, the device will automatically disconnect the input when the voltage exceeds the OVP threshold. For UVP, the device will enter a low-power state when the input voltage falls below the UVP threshold. You can adjust these thresholds using external resistors.
  • The BQ25792RQMR is designed for input voltages between 3.5V and 24V. While it's possible to use it with non-standard input voltages, this may require custom configuration and may affect the device's performance and reliability. Consult TI's application notes and technical support for guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ25792RQMR Overview

Use the download button to access the BQ25792RQMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ257, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
