BQ25886RGER - Texas Instruments

Description: Standalone, 2-cell, 2-A boost-mode battery charger for USB input

Download BQ25886RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

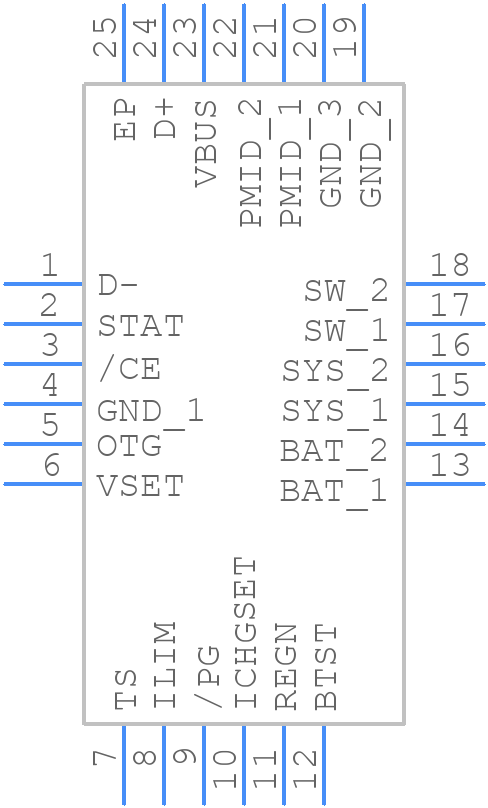

BQ25886RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25886RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H
click to zoom
3D Models
BQ25886RGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H
click to zoom

BQ25886RGER Details

  • Manufacturer Part Number:

    BQ25886RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-05-28

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    6.2 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    6.2 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ25886RGER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the TI application note 'AN-1149: PCB Layout Guidelines for Switching Regulators' to ensure optimal performance and minimize EMI.
  • The selection of the inductor depends on the specific application requirements. TI provides a list of recommended inductors in the datasheet, but you can also use the TI inductor selection tool to find the right inductor for your design.
  • The BQ25886RGER can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and minimize the risk of damage to the device.
  • The BQ25886RGER has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The datasheet provides more information on how to implement overcurrent protection.
  • The BQ25886RGER is rated for operation up to 105°C, but it's recommended to derate the device's performance at high temperatures. TI provides thermal derating guidelines in the datasheet.
