BQ25890RTWT - Texas Instruments

Description: 1S 5A Fast Charger MaxCharge™ Technology for High Input Voltage and Adjustable USB OTG Boost

Download BQ25890RTWT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

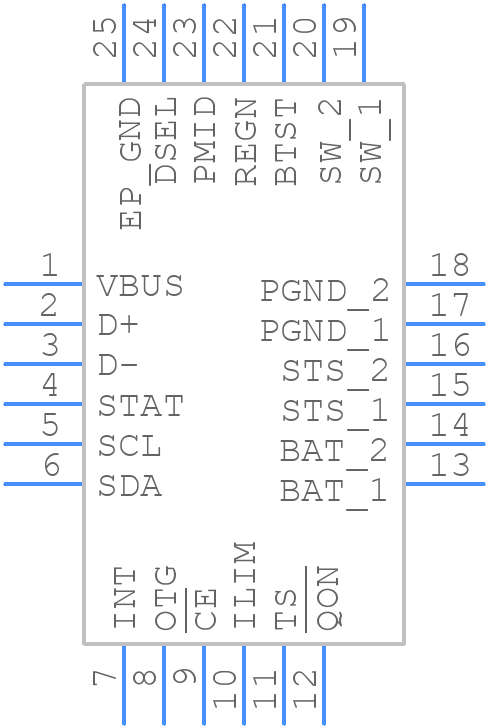

BQ25890RTWT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25890RTWT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW (S-PWQFN-N24)
click to zoom
3D Models
BQ25890RTWT - Texas Instruments - 3D model - Quad Flat No-Lead - RTW (S-PWQFN-N24)
click to zoom

BQ25890RTWT Details

  • Manufacturer Part Number:

    BQ25890RTWT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    14 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ25890RTWT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the power traces is recommended. Keep the input and output capacitors close to the IC, and use a Kelvin connection for the sense resistors.
  • Use the TI WEBENCH Power Designer tool to generate a compensation network based on the specific application requirements. The tool provides a recommended compensation network based on the input and output voltage, output current, and other parameters.
  • The BQ25890RTWT can handle up to 18V input voltage, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent damage to the IC.
  • Monitor the junction temperature (TJ) of the IC, which should not exceed 125°C. Use thermal design and layout techniques, such as thermal vias and heat sinks, to reduce the thermal resistance and keep the IC within its thermal limits.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be rated for the maximum input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ25890RTWT Overview

Use the download button to access the BQ25890RTWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ258, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
