BQ25898DYFFR - Texas Instruments

Description: Battery Management I2C 1cell 4A buck battery charger with power path and HVDCP 42-DSBGA -40 to 125

Download BQ25898DYFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

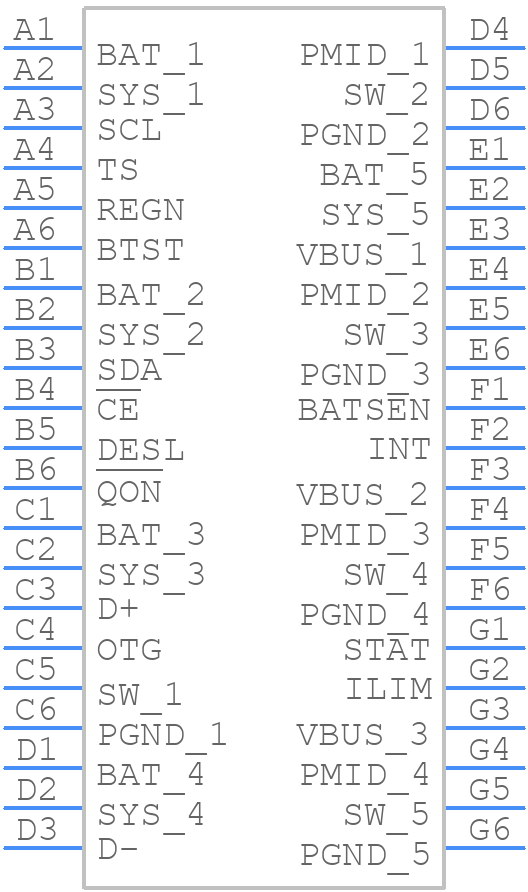

BQ25898DYFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25898DYFFR - Texas Instruments PCB footprint - BGA - BGA - YFF0042
click to zoom
3D Models
BQ25898DYFFR - Texas Instruments - 3D model - BGA - YFF0042
click to zoom

BQ25898DYFFR Details

  • Manufacturer Part Number:

    BQ25898DYFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-04-06

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    R-PBGA-B42

  • JESD-609 Code:

    e1

  • Length:

    2.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.415 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    14 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.4 mm

BQ25898DYFFR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the layout guidelines in the application note 'BQ25898 Layout Guidelines' (SLUAUH7) for optimal performance.
  • The selection of the inductor depends on the specific application requirements. TI provides a list of recommended inductors in the datasheet, but you can also use the 'Inductor Selection Tool' (SLVCAT7) to find the right inductor for your design.
  • The BQ25898DYFFR is rated for operation up to 105°C ambient temperature, but it's recommended to derate the charger's output current at higher temperatures to ensure reliable operation.
  • Yes, the BQ25898DYFFR is compatible with USB-C ports, but you'll need to ensure that the port is configured correctly and that the charger is properly configured to support USB-C power delivery (PD) protocols.
  • The BQ25898DYFFR has built-in OVP, but you may need to add external components to ensure that the charger can handle high-voltage transients. TI provides guidance on OVP implementation in the application note 'BQ25898 Overvoltage Protection' (SLUAUH6).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ25898DYFFR Overview

Use the download button to access the BQ25898DYFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ258, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
