BQ26500PWR - Texas Instruments

Description: Battery Management Complete Battery Fuel Gauge

Download BQ26500PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

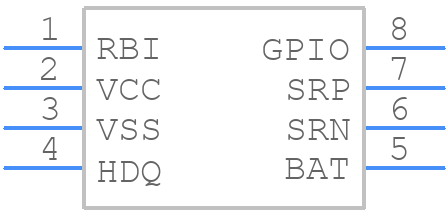

BQ26500PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ26500PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G8)
click to zoom
3D Models
BQ26500PWR - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G8)
click to zoom

BQ26500PWR Details

  • Manufacturer Part Number:

    BQ26500PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ26500PWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'BQ26500PWR PCB Layout Guidelines' (SLUAUH7) for optimal performance.
  • The BQ26500PWR can be configured for different battery chemistries by adjusting the voltage and current settings through the I2C interface. Refer to the datasheet and the application note 'BQ26500PWR Battery Fuel Gauge Configuration' (SLUAUH6) for more information.
  • The accuracy of the fuel gauge measurement in the BQ26500PWR is typically ±1% to ±2% over the entire operating range, depending on the battery type and operating conditions. Refer to the datasheet for more information on the accuracy specifications.
  • The BQ26500PWR is rated for operation up to 85°C, but it can be used in high-temperature applications with proper thermal design and derating. Refer to the datasheet and the application note 'BQ26500PWR Thermal Design Considerations' (SLUAUH8) for more information.
  • The BQ26500PWR requires calibration for accurate fuel gauge measurements. Refer to the datasheet and the application note 'BQ26500PWR Calibration and Compensation' (SLUAUH9) for more information on the calibration process.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ26500PWR Overview

Use the download button to access the BQ26500PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ265, or try a keyword search, such as Power Management Circuits
