Texas Instruments provides a recommended PCB layout in the BQ27350PWR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and accuracy.
The BQ27350PWR fuel gauge requires calibration to ensure accurate state-of-charge (SOC) estimation. Texas Instruments provides a calibration guide in the device's user manual, which involves measuring the battery's open-circuit voltage and impedance at different SOC levels.
Temperature affects the battery's characteristics, which in turn affects the fuel gauge accuracy. The BQ27350PWR has a built-in temperature sensor, and the device's algorithm compensates for temperature effects. However, it's essential to consider the operating temperature range and its impact on the battery's performance during system design.
The BQ27350PWR is optimized for lithium-ion batteries, but it can be used with other battery chemistries with some modifications. However, Texas Instruments recommends consulting their application notes and seeking support from their engineers to ensure proper configuration and calibration for the specific battery chemistry used.
The BQ27350PWR provides alerts and warnings for overcharge, over-discharge, and over-temperature conditions. To implement battery protection, the system designer should connect the device's alert pins to a microcontroller or a dedicated protection IC, which can then control the charging and discharging of the battery accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ27350PWR Overview

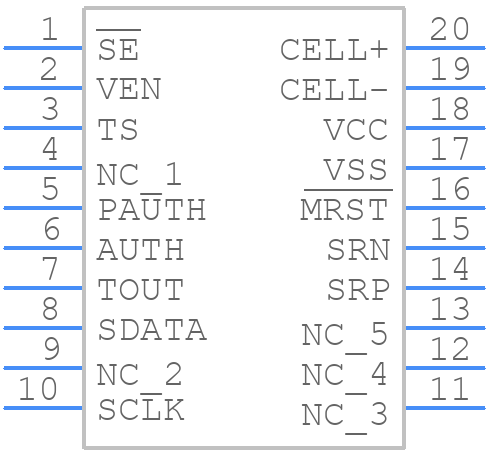

Use the download button to access the BQ27350PWR schematic symbol, PCB footprint, and 3D model.
