Texas Instruments provides a recommended PCB layout in the application note SLUA533, which includes guidelines for component placement, routing, and thermal management to ensure accurate fuel gauging.
The BQ27421YZFR-G1A requires calibration to ensure accurate fuel gauging. The calibration process involves learning the battery's characteristics, such as capacity and internal resistance. Texas Instruments provides a calibration guide in the application note SLUA534, which outlines the procedures for calibration.
The BQ27421YZFR-G1A is designed to support up to 4 batteries in series. However, it's recommended to consult with Texas Instruments' application engineers to determine the feasibility of connecting more batteries in series or parallel.
The BQ27421YZFR-G1A provides battery health monitoring by tracking parameters such as state of charge, state of health, and internal resistance. The device also provides indicators of battery health, including capacity loss, power fade, and internal resistance increase.
The BQ27421YZFR-G1A uses a proprietary communication protocol, known as the TI-BQ27421 protocol, to communicate with the host controller. The device can be interfaced with the host controller using a standard I2C or SPI interface.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ27421YZFR-G1A Overview

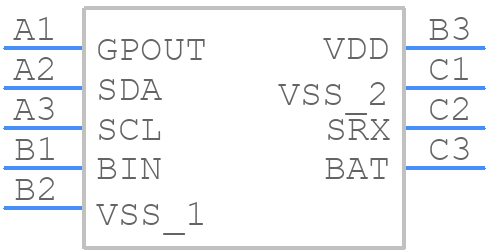

Use the download button to access the BQ27421YZFR-G1A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ274,
or try a keyword search, such as Power Management Circuits
