BQ27421YZFR-G1D - Texas Instruments

Description: Battery Management Fuel Gauge w/ Intg Sense Resistor

Download BQ27421YZFR-G1D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

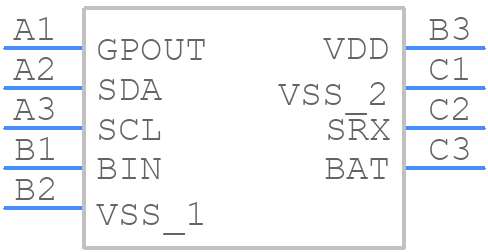

BQ27421YZFR-G1D - Texas Instruments - PCB symbol
