Texas Instruments provides a recommended PCB layout in the application note SLUA533, which includes guidelines for component placement, routing, and thermal management to ensure accurate fuel gauging.
The BQ27421YZFT-G1B requires calibration to ensure accurate fuel gauging. The calibration process involves learning the battery's characteristics, such as capacity and internal resistance. Texas Instruments provides a calibration guide in the application note SLUA534, which outlines the procedures for calibration, including the use of the TI-provided calibration software.
The sense resistor value should be selected based on the battery's maximum current and the desired accuracy of the fuel gauge. A higher sense resistor value provides better accuracy but increases the power consumption. Texas Instruments provides guidelines for selecting the sense resistor value in the datasheet and application notes.
The BQ27421YZFT-G1B provides battery health monitoring by tracking parameters such as capacity, internal resistance, and cycle count. The device provides indicators of battery health, including the state of charge (SOC), state of health (SOH), and state of function (SOF). These indicators can be used to determine the overall health of the battery and predict its remaining lifespan.
The BQ27421YZFT-G1B supports I2C and HDQ communication protocols. The device can be interfaced using a microcontroller or a dedicated interface IC. Texas Instruments provides example code and interface guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ27421YZFT-G1B Overview

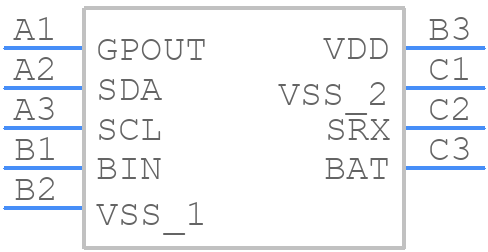

Use the download button to access the BQ27421YZFT-G1B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ274,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
