BQ27532YZFR-G1 - Texas Instruments

Description: Battery Management Unit Impedance Track Fuel Gauge for bq2425x Charger

Download BQ27532YZFR-G1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

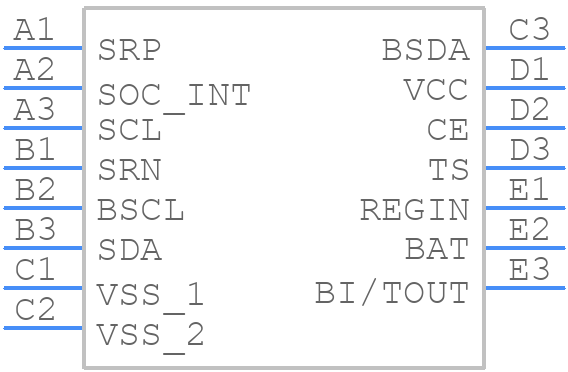

BQ27532YZFR-G1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ27532YZFR-G1 - Texas Instruments PCB footprint - BGA - BGA - YZF0015-1
click to zoom
3D Models
BQ27532YZFR-G1 - Texas Instruments - 3D model - BGA - YZF0015-1
click to zoom

BQ27532YZFR-G1 Details

  • Manufacturer Part Number:

    BQ27532YZFR-G1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-XBGA-B15

  • JESD-609 Code:

    e1

  • Length:

    2.61 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA15,3X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.956 mm

BQ27532YZFR-G1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the fuel gauge circuitry is recommended. Keep the sense resistors close to the battery and use a Kelvin connection to minimize errors.
  • Use the TI-provided calibration software and follow the application note (SLUA533) guidelines to calibrate the fuel gauge for your specific battery. You may need to perform multiple iterations of calibration to achieve optimal results.
  • The BQ27532YZFR-G1 can accurately track up to 512 charge/discharge cycles. If your application requires more cycles, consider using an external counter or a different fuel gauge IC.
  • Yes, but you'll need to ensure that each cell is balanced and has a similar state of charge. You may need to add external circuitry to balance the cells and ensure accurate fuel gauge measurements.
  • Use the EN pin to control the sleep mode. When EN is low, the device is in sleep mode. Use an external timer or a microcontroller to wake up the device periodically to take measurements and update the fuel gauge.
