BQ27621YZFT-G1A - Texas Instruments

Description: System-Side Fuel Gauge with Dynamic Voltage Correlation, Battery Gas Gauge

Download BQ27621YZFT-G1A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

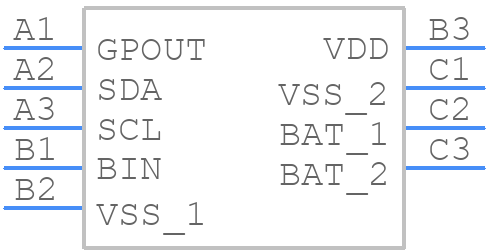

Symbol
BQ27621YZFT-G1A - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ27621YZFT-G1A - Texas Instruments PCB footprint - BGA - BGA - YZF0009-CO1
click to zoom
3D Models
BQ27621YZFT-G1A - Texas Instruments - 3D model - BGA - YZF0009-CO1
click to zoom

BQ27621YZFT-G1A Details

  • Manufacturer Part Number:

    BQ27621YZFT-G1A

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-XBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.6205 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max (Isup):

    0.027 mA

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.45 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.58 mm

BQ27621YZFT-G1A Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the battery voltage is recommended. Keep the high-current paths short and wide, and use thermal vias to connect the IC to the ground plane.
  • Calibrate the fuel gauge by charging the battery to 100% and then discharging it to 0%. Take note of the voltage and current readings at each stage. Use the BQ27621YZFT-G1A's calibration registers to adjust the gauge's accuracy.
  • The BQ27621YZFT-G1A can handle charging currents up to 5A, but it's recommended to limit it to 2A for optimal performance and to prevent overheating.
  • Use the BQ27621YZFT-G1A's protection features, such as overcharge protection, over-discharge protection, and short-circuit protection, by configuring the protection registers and using external FETs to control the charging and discharging paths.
  • Yes, but you may need to adjust the fuel gauge calibration and protection settings. The BQ27621YZFT-G1A is optimized for lithium-ion batteries, but it can be used with other chemistries like lithium-polymer or nickel-metal hydride with proper calibration and configuration.
