Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'Battery Fuel Gauge Design Guide' (SLUA451) for optimal performance.
Calibration of the fuel gauge involves setting the device's internal registers to match the specific battery chemistry and capacity. TI provides a calibration guide in the datasheet and also offers a software tool, 'Fuel Gauge Calibration Tool' (FGCT), to simplify the process.
The accuracy of the SOC measurement depends on various factors, including the quality of the calibration, battery health, and operating conditions. TI specifies an accuracy of ±5% for the BQ27741YZFT-G1, but this can be improved with careful calibration and system design.
Yes, the BQ27741YZFT-G1 is designed to support multiple battery chemistries, including lithium-ion, nickel-metal hydride, and lead-acid. However, each chemistry requires a specific calibration and configuration, which can be achieved through the device's registers and software tools.
The BQ27741YZFT-G1 does not have built-in battery balancing capabilities. However, TI recommends using an external balancing circuit or a dedicated balancing IC, such as the BQ79606A, to ensure proper balancing of the battery pack.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ27741YZFT-G1 Overview

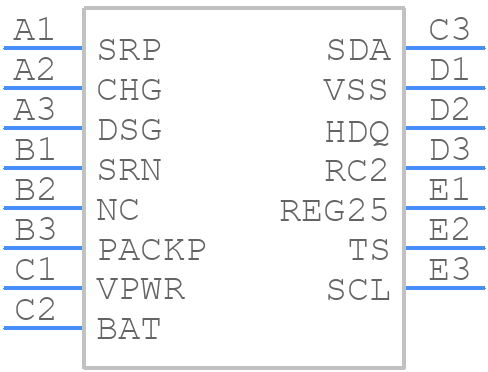

Use the download button to access the BQ27741YZFT-G1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ277,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
