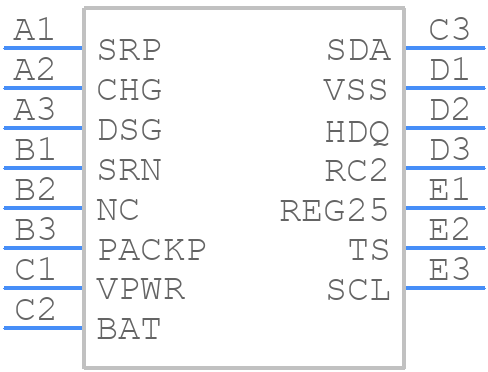

BQ27742YZFT-G1 - Texas Instruments

BQ27742YZFT-G1 Details

• Manufacturer Part Number:

  BQ27742YZFT-G1

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  ALSO OPERATES WITH SUPPLY 2.45 TO 2.8V; VG THR FOR ATTACHMENT DET IS 2.7V AND REMOVAL DET IS 1V

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  BATTERY GAUGE

• JESD-30 Code:

  R-XBGA-B15

• JESD-609 Code:

  e1

• Length:

  2.776 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  15

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VFBGA

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.625 mm

• Supply Current-Max (Isup):

  0.01 mA

• Supply Voltage-Max (Vsup):

  5 V

• Supply Voltage-Min (Vsup):

  2.8 V

• Supply Voltage-Nom (Vsup):

  3.6 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.956 mm
