Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the battery connections short and wide, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane to reduce noise and improve performance.
Calibration is critical for accurate fuel gauging. Follow the calibration procedure outlined in the datasheet, and ensure the battery is fully charged and discharged during the calibration process. It's also recommended to use a high-accuracy voltage reference and to calibrate the device at different temperatures to account for temperature-related variations.
Temperature affects the fuel gauge accuracy, especially at extreme temperatures. The BQ28Z620DRZR has a built-in temperature sensor, but it's essential to consider temperature-related variations during calibration. Texas Instruments recommends calibrating the device at different temperatures to ensure accurate fuel gauging across the operating temperature range.
Battery aging and capacity loss can affect fuel gauge accuracy. Implement a mechanism to track battery capacity loss over time, such as using a learning algorithm or periodic recalibration. Additionally, consider using a battery health monitoring feature, like the one provided by the BQ28Z620DRZR, to detect battery degradation and adjust the fuel gauge accordingly.
The BQ28Z620DRZR supports I2C and HDQ communication interfaces. I2C is the recommended interface for most applications, as it provides a more flexible and widely adopted communication protocol. Ensure proper I2C bus design and implementation to avoid communication errors and ensure reliable data transfer.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ28Z620DRZR Overview

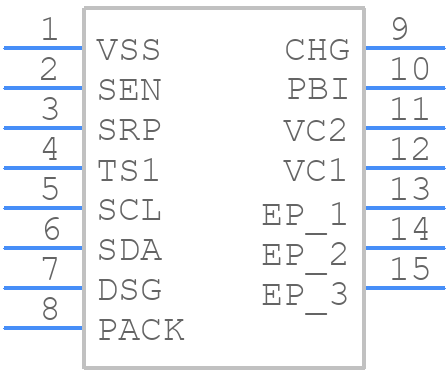

Use the download button to access the BQ28Z620DRZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ28Z,
or try a keyword search, such as Power Management Circuits
