BQ29312APWRG4 - Texas Instruments

Description: Battery Management 2-3-4 Cell Lithium Protection AFE

Download BQ29312APWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

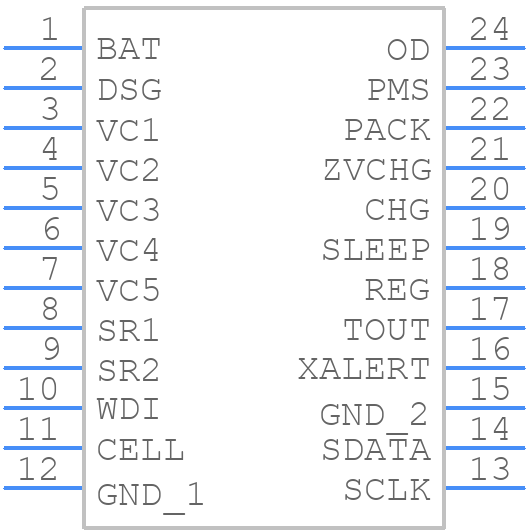

BQ29312APWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ29312APWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A _2021
click to zoom
3D Models
BQ29312APWRG4 - Texas Instruments - 3D model - Small Outline Packages - PW0024A _2021
click to zoom

BQ29312APWRG4 Details

  • Manufacturer Part Number:

    BQ29312APWRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    4

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • Input Voltage-Max:

    25 V

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ29312APWRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the TI application note 'PCB Layout Guidelines for Switching Regulators' (SLUP230) to ensure optimal performance and minimize EMI.
  • The selection of the inductor depends on the specific requirements of your design, such as the input voltage, output voltage, and current. TI provides a list of recommended inductors in the datasheet, but you can also use the TI Inductor Selection Tool to find a suitable inductor for your application.
  • The maximum junction temperature of the BQ29312APWRG4 is 150°C, but it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • The BQ29312APWRG4 is rated for operation up to 105°C, but it's recommended to derate the output current and voltage according to the thermal derating curve in the datasheet to ensure reliable operation in high-temperature environments.
  • TI provides a troubleshooting guide in the datasheet, which covers common issues such as output voltage errors, overcurrent protection, and thermal shutdown. You can also use TI's Power Management Troubleshooting Guide (SLUA623) for more general guidance on troubleshooting power management issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ29312APWRG4 Overview

Use the download button to access the BQ29312APWRG4 schematic symbol, PCB footprint, and 3D model.
