Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency switching converters, such as keeping the power stage components close together, using a solid ground plane, and minimizing trace lengths and widths.
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and current. Texas Instruments provides a list of recommended inductors in the datasheet, but it's also recommended to consult with inductor manufacturers and consider factors such as inductor core material, size, and saturation current.
The maximum ambient temperature range for the BQ29330DBTG4 is -40°C to 125°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
To ensure EMC, it's recommended to follow good design practices, such as using a shielded enclosure, keeping the power stage components close together, and using filtering components such as capacitors and inductors to reduce electromagnetic interference (EMI).
The recommended input capacitor type is a ceramic capacitor with a value of 10uF to 22uF, depending on the specific application requirements. It's also recommended to consider the capacitor's voltage rating, ESR, and temperature coefficient.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ29330DBTG4 Overview

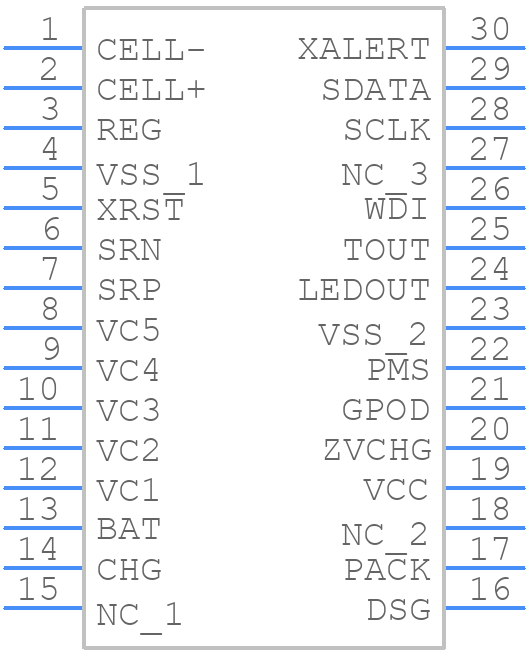

Use the download button to access the BQ29330DBTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ293,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
