Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general guidelines for high-frequency PCB design, such as keeping the power traces short and wide, using a solid ground plane, and minimizing vias and thermal reliefs.
The sense resistor value depends on the maximum current and voltage of your application. A general rule of thumb is to choose a sense resistor value that results in a voltage drop of around 50-100 mV at the maximum current. You can use the formula Rsense = (Vfs / Imax) to calculate the sense resistor value, where Vfs is the full-scale voltage and Imax is the maximum current.
The EN (enable) pin is used to turn the device on or off. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled and enters a low-power state. You can use the EN pin to control the device's power state in your application, for example, to reduce power consumption when the device is not in use.
The fault flags and warning flags in the BQ29401PW indicate various error conditions, such as overcurrent, overvoltage, and undervoltage. You can use the flags to detect and respond to errors in your application. For example, you can use the flags to trigger an interrupt or reset the device. Refer to the datasheet for a detailed description of each flag and its corresponding error condition.
The BQ29401PW has an operating temperature range of -40°C to 125°C. However, the device's performance and accuracy may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ29401PW Overview

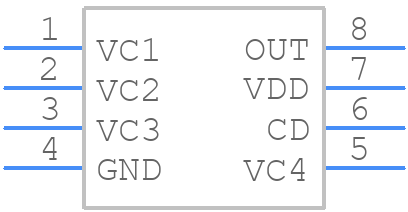

Use the download button to access the BQ29401PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ294,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
