BQ29410PWR - Texas Instruments

Description: Battery Management Secondary Over Vltg Protection

Download BQ29410PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

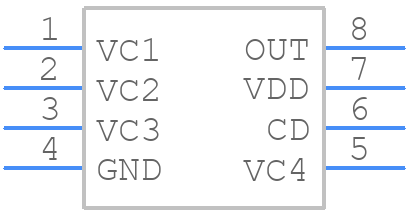

Symbol
BQ29410PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ29410PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0008A
click to zoom
3D Models
BQ29410PWR - Texas Instruments - 3D model - Small Outline Packages - PW0008A
click to zoom

BQ29410PWR Details

  • Manufacturer Part Number:

    BQ29410PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Battery over-voltage protection(Min/Max)(V) : 4.325 and 4.375

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    SECONDARY BATTERY PROTECTOR

  • Input Voltage-Max:

    25 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ29410PWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the TI application note 'Battery Management System (BMS) PCB Layout Guidelines' (SLUA623) for optimal performance and to minimize noise and EMI.
  • The BQ29410PWR's fuel gauge can be calibrated using the TI-provided software tool, 'Battery Management Studio' (BMS). The tool allows you to configure and calibrate the fuel gauge, as well as monitor the battery's state of charge and health.
  • The BQ29410PWR is designed to support up to 4 series-connected cells. However, it's possible to connect more cells using an external multiplexer or by using multiple BQ29410PWR devices in a master-slave configuration.
  • The BQ29410PWR is rated for operation up to 85°C, but it can be used in high-temperature applications with proper thermal management and derating. It's recommended to consult the datasheet and application notes for guidance on thermal design and derating.
  • The BQ29410PWR has built-in cell balancing functionality, which can be configured to balance the cells during charging or discharging. The device can also be used with external balancing circuits or algorithms for more advanced balancing strategies.
